WetBase® Wet Room Walk In Shower Tray Kit - OFFSET DRAIN - 1200 x 760 x 20mm
SKU : WBSOK-71
You May Also Need
Selection Subtotal:
£220.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 1200 x 760 x 20mm
- OFFSET CENTRE Drain Position
- Under Support Required
- Complete with fast flow drain
- Optional tanking kit
- Can be trimmed by 50mm off each edge
- 20 Year Guarantee
- Wood or Concrete Subfloor
- Tiled Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Underfloor Heating
- Vinyl Floor Finish
- Micro Cement
- Use with Wheelchairs
- Fitting Direct on to Joists
To Here (this label will be hidden)
The Wetrooms Online WetBase® Standard wet room floor / shower tray is an easy to install ‘walk in shower’ pre base, with a classic square design drain outlet. This kit comes complete with a Dallmer fast flow drain and stainless steel grill.
Optional Mapei 4m/5kg liquid based (no mixing required) tanking kit for waterproofing the tray area or a complete Tanking, Fixing & Sealing Kit for fixing the WetBase®, waterproofing the floor and walls in addition to sealing the perimeter of the tray where it meets the wall / surrounding floor. The perfect solution for installing a wet room or walk in shower. Available at a discounted price when purchased with a wet room tray.
Designed and manufactured in Germany, the WetBase® Standard is a premium wet room floor former, featuring an inbuilt fall (2%) to the drain. The tray can be trimmed by up to 50mm off each edge of the tray. Suitable for installation in both wooden and concrete floors, the WetBase® standard is designed to be installed flush to the surrounding floor (the surrounding floor level will need to be raised with Tile Backer Insulation Board), and over tiled to create a level access showering area. 20 year guarantee when installed in accordance to the instructions.
The Dallmer fast flow drain is designed to be connected to a standard 43mm (1 ½ inch) waste water pipe and secured in place using solvent weld.
Please see the WetBase® Shower Tray FAQ's for further details on the drain connection, and answers to more, common WetBase® installation questions.
Drain Cover Options
A number of options are available for the WetBase Standard wet room shower tray. As standard the tray comes with a pressed stainless steel cover. This can be upgraded to a coloured option as follows: Matt Grey, Matt White, Gloss Black or Hammered Silver.
For a more luxury finish, the cover can be upgraded to a Octad drain cover. Manufactured for Wetrooms Online from 5mm thick stainless steel. Laser cut for a clean, precision finish. Available in Brushed Stainless Steel, Matt Black or Gold Gloss finishes.
IMPORTANT: We try to ensure that colours shown are as true to color as possible. However, due to inconsistencies of monitors, lighting sources, digital photography etc, we cannot guarantee that the color you see on your screen accurately portrays the true color of the product. Screen colour swatches are intended as a guide only and should not be regarded as absolutely correct.

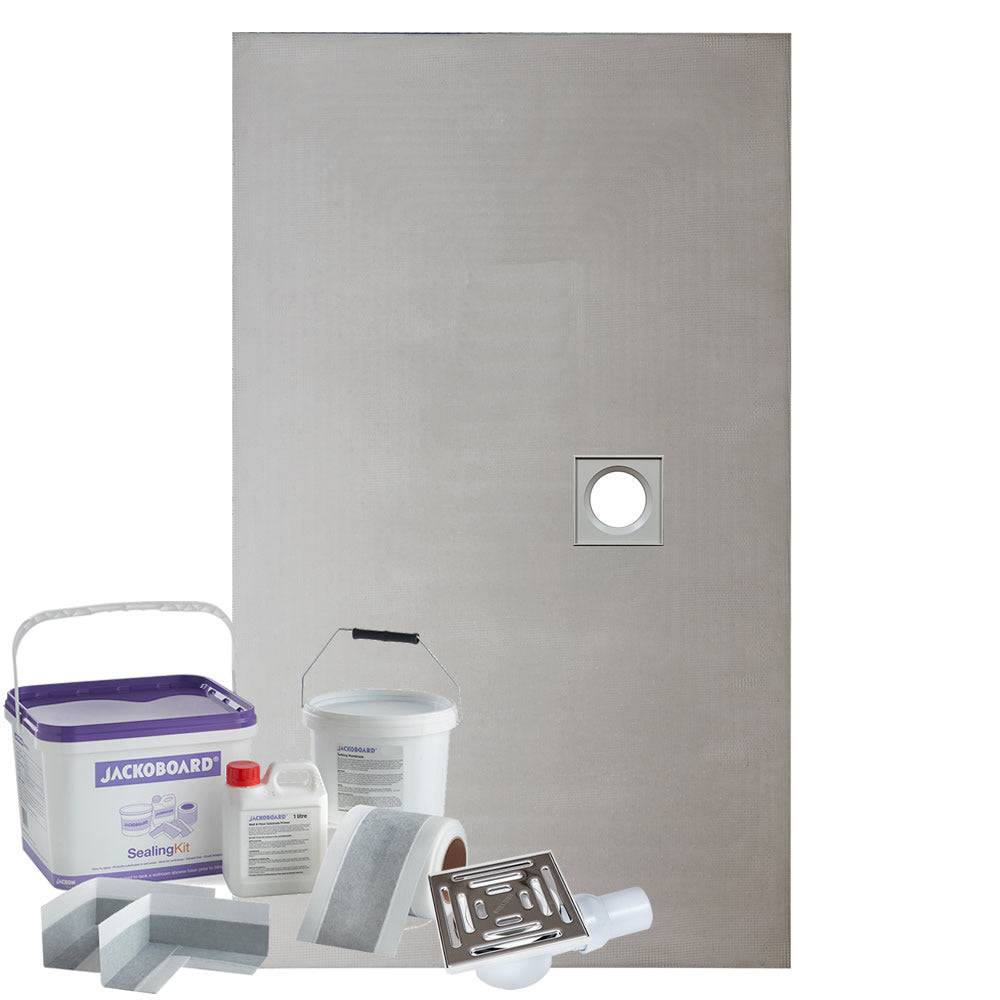

WetBase® Wet Room Kit Contents:
- 1 x 1200 x 760 WetBase® tray 20mm deep, 2% fall.
- 1 x Fast flow drain (horizontal outlet) with standard stainless steel grid
- Fitting Instructions

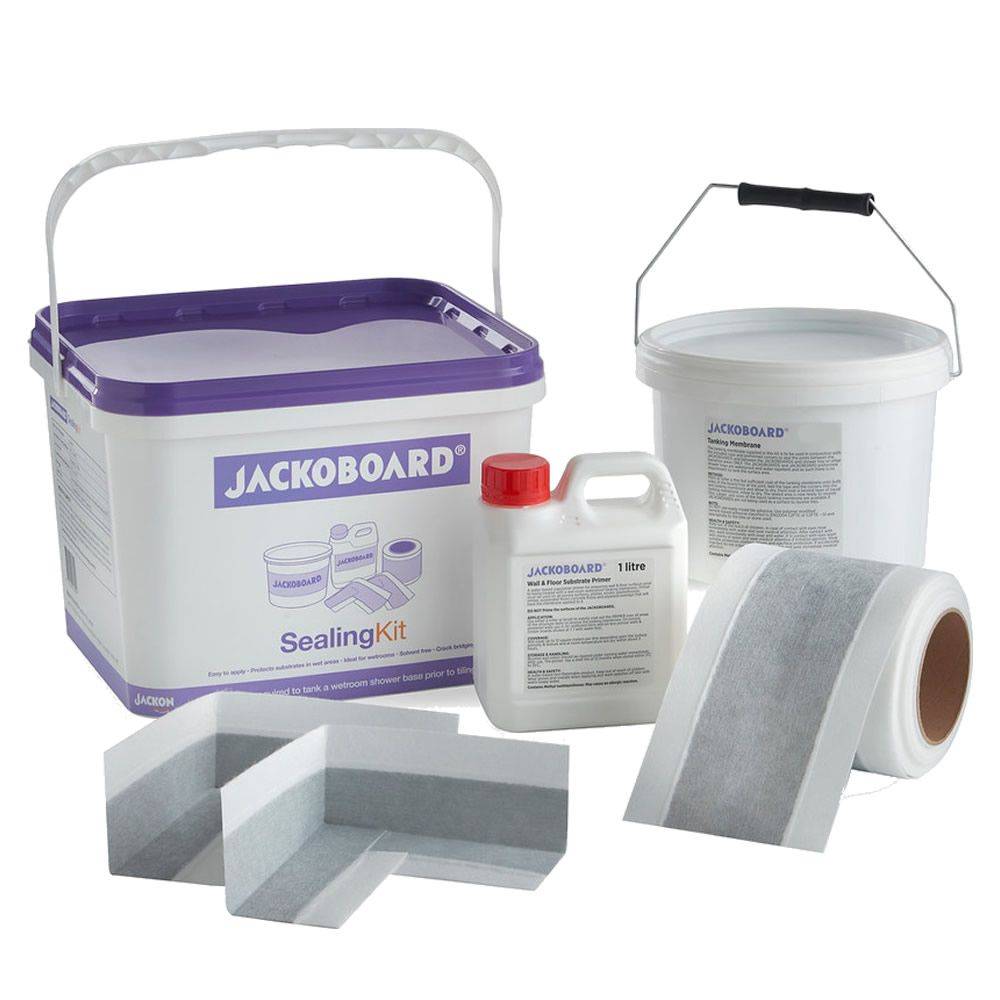

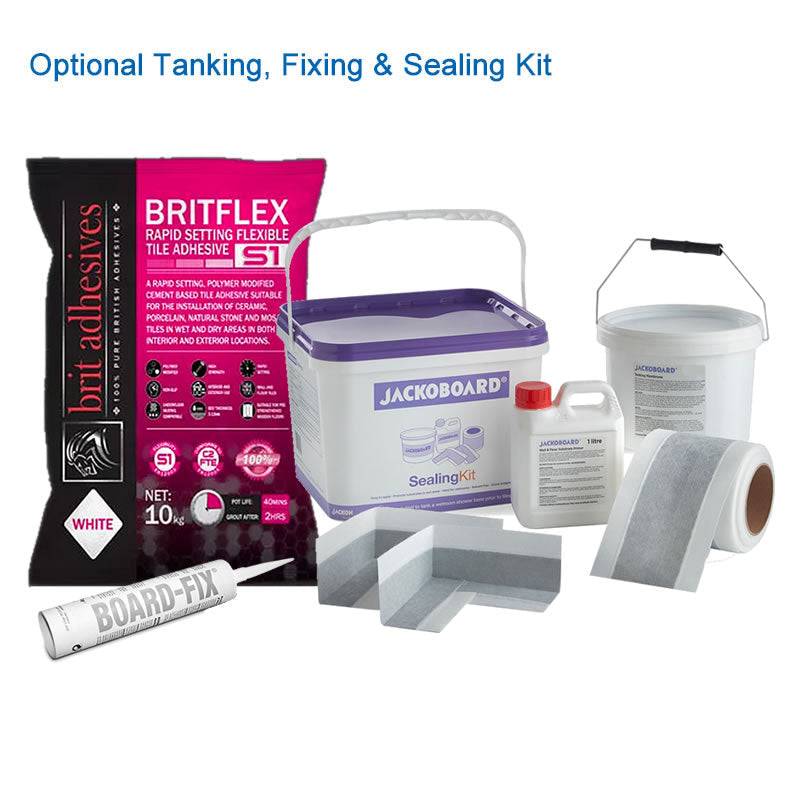

- Optional 5KG Tanking Kit: Mapei 4m Tanking Kit OR Tanking, Fixing & Sealing Kit:
- 1 x 4KG Tanking liquid
- 1 x 1 Litre Primer Liquid
- 1 x 10 metre tape for floor/tray joints
- 1 x Mapei 4m Tanking Kit
- 1 x 10 kg Britflex S1 Rapidset flexible adhesive
- 1 x 290ml Jackoboard Board Fix Sealant
- 1 x 10m Extra Sealing Tape for Walls and Floor
- 2 x Internal Corners
Have a question about the WetBase® or fitting it?
If you have a question about the WetBase® or the fitting of it please see the following help articles:
Choosing the Correct Wet Room Tray
WetBase® Shower Tray FAQ's
WetBase® Shower Tray Fitting Instructions
Wet Room FAQ's
If you cant find an answer to your question in the above documents, or need further help or advice, please give our experts a call on 0800 280 8008, use the live chat function (in the bottom right corner) or send an email to info@wetrooms-online.com

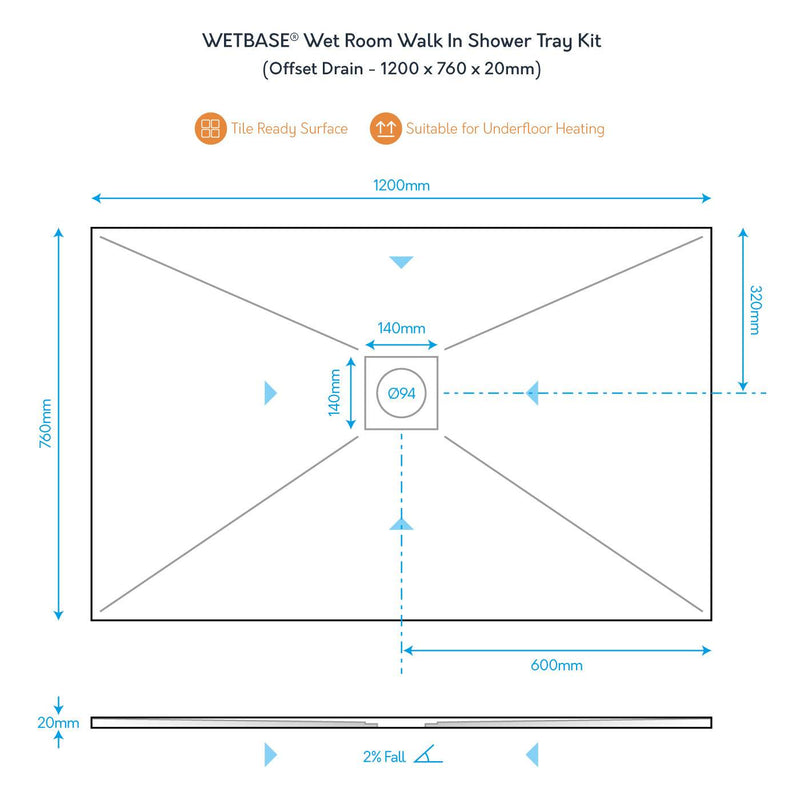

- 1200 x 760 x 20mm
- CENTRE OFFSET Drain Position
- Pre-made 2% fall to drain
- Lightweight & Strong
- Under-boarding of WetBase® required to provide support
- Complete with horizontal Dallmer fast flow drain
- Horizontal drain sits approx. 86.5mm beneath tray
- Fully trimmable by up to 50mm off each edge (equal amounts must be trimmed from each side)
- Ideal for creating flush 'walk in' showering areas (rest of floor will require boarding by approx. 10mm)
- Designed and manufactured in Germany
- 20 years guarantee if fitted in accordance with manufacturer’s instructions
MERLYN 8MM Wetroom Panel
Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.
Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.
Features:
- Height: 2015mm (Including rail)
- All panels from 700mm & above come with a 1000mm stabilising bar
- Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
- * All shower screens are nominally sized, see screen adjustment tab for measurements
- 8mm toughened glass
- Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
- Strong & sturdy constructions
- 3m support post can be retro-fitted to glass thickness of 8mm
- Suitable for recess or corner situation
- Optional Swivel panel can be retrofitted to any 8mm wetroom panel
- Easy clean Mershield Stayclear protected glass
- Reversible
- Corner profile option available
- Wetroom compatible
- 20-year Guarantee
