wedi Fundo Ligno Plus Shower Tray Former - 900 x 900 x 23mm - CENTRE Drain
SKU : 072070010
You May Also Need
Selection Subtotal:
£293.20
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)

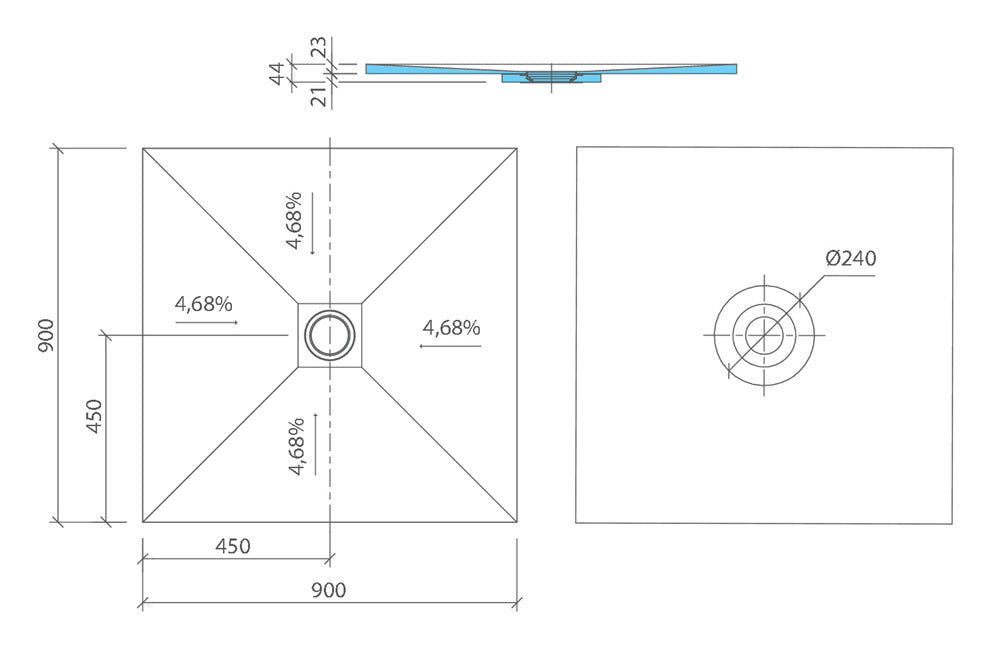

- 900 x 900 x 23mm (44mm at drain collar)
- CENTRE Drain Position
- Under Support Required
- Can be trimmed by 50mm off each edge
- Reinforced drain area
- Predefined 4-sided gradient
- 100% waterproof to the core
- Simple and straightforward installation
- 10 Year Guarantee
- Concrete Subfloor
- Tiled Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Underfloor Heating
- Use with Wheelchairs
(min tile size 50 x 50mm)
- Vinyl Floor Finish
- Micro Cement
- Fitting Direct on Joists
To Here (this label will be hidden)

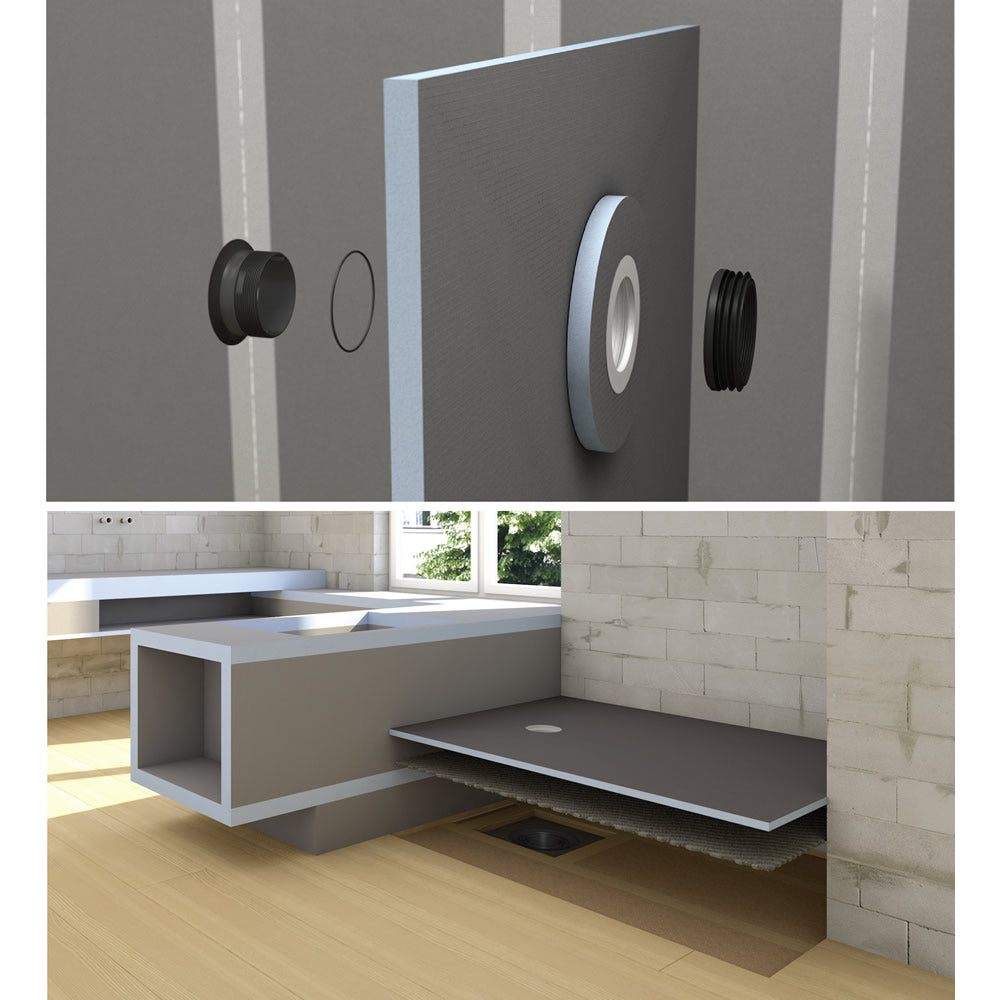

Fundo Ligno Plus shower elements were developed especially for use in old and new buildings with suspended timber floors. They are ready to receive tiles or Fundo Top design surfaces as a finish. The Fundo Ligno Plus is just 23 mm thick at its outer edges (44mm at drain collar) and can therefore be easily integrated into the existing wooden layer.
wedi Fundo shower elements can be installed on almost any surface as a directly tileable, flush-to-floor shower systems. The system includes a hard rigid XPS foam core with a special cementitious surface coating, a predefined surface gradient and a matching drainage. Due to its special design, the Fundo Ligno Plus is especially suitable for installation in wooden floors. Thanks to its outer edge thickness of just 23 mm it sits and fits flush with the existing wooden layer.
Due to the integrated slope, the outer edge thickness falls significantly and so, a support plate is fitted underneath reinforcing the drain area, providing peace of mind about the ever-moving, moisture sensitive wooden floor.
In combination with the (optional) seamless, non-slip and antibacterial Fundo Top design surface it provides complete protection against damp, mould and fungi at both substrate and surface level.
Drain:
A drain is not included as standard with the Wedi Fundo Ligno Plus, therefore it will need to be purchased if required. A number of options are available as follows:

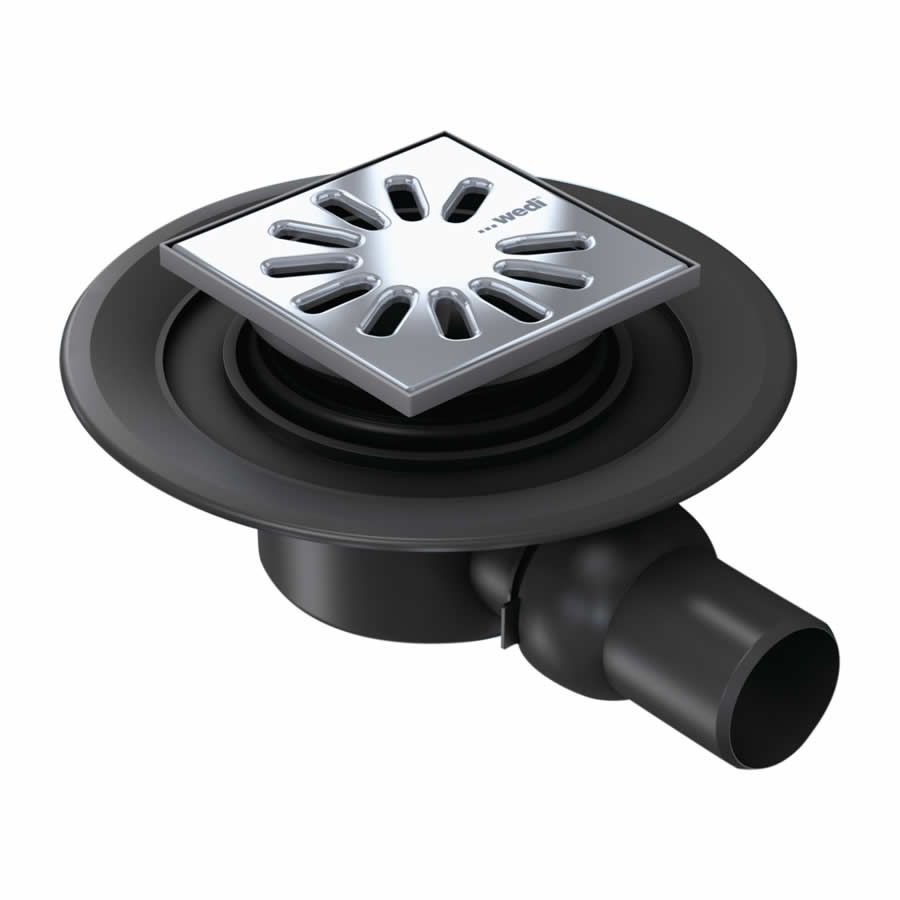

DN50 Square: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN50 Round: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN40 Mini Max Low profile: Depth below tray 57mm - Flow rate 0.50 l/s / 30.0 l/m
To make installation of the drain easier a drain substructure is optionally available. The substructure supports the drain body, eliminating the need to cement the drain body in.
Additionally, alternative drain grates (standard supplied) are available to purchase separately.
Waterproofing/Sealing:
The Wedi Fundo Ligno wet room tray former is itself 100% waterproof, including the core. This means that should it become damaged the tray former is still waterproof. If a Wedi Fundo Ligno tray is joined to Wedi Building Board using the Wedi 610 Hybrid Adhesive and Sealant, as per the manufacturer’s instructions, then that joint will be 100% waterproof. However, we strongly advise the taping of all joints with waterproof tape, and then sealing the whole area with the Wedi Sealing Kit to provide extra assurances on the waterproofing and peace of mind for years to come.
Why purchase wedi products from Wetrooms Online?
When you purchase any wedi product from Wetrooms Online, you are not only purchasing from an authorised wedi retailer, you are also purchasing from a wedi expert, recognised as such by wedi themselves.
We work closely with wedi to ensure that we offer the best possible wedi buying experience. Our staff regularly attend wedi UK head office to undertake training on the wedi range of products. As such we are able to offer help on the most suitable products and their application’s.
Wetrooms Online are proud to be wedi authorised retailers and wedi experts.
- Specially for wooden floors - At just 23 mm thick, this floor element is suitable for flush-mounting in almost any wooden floor.

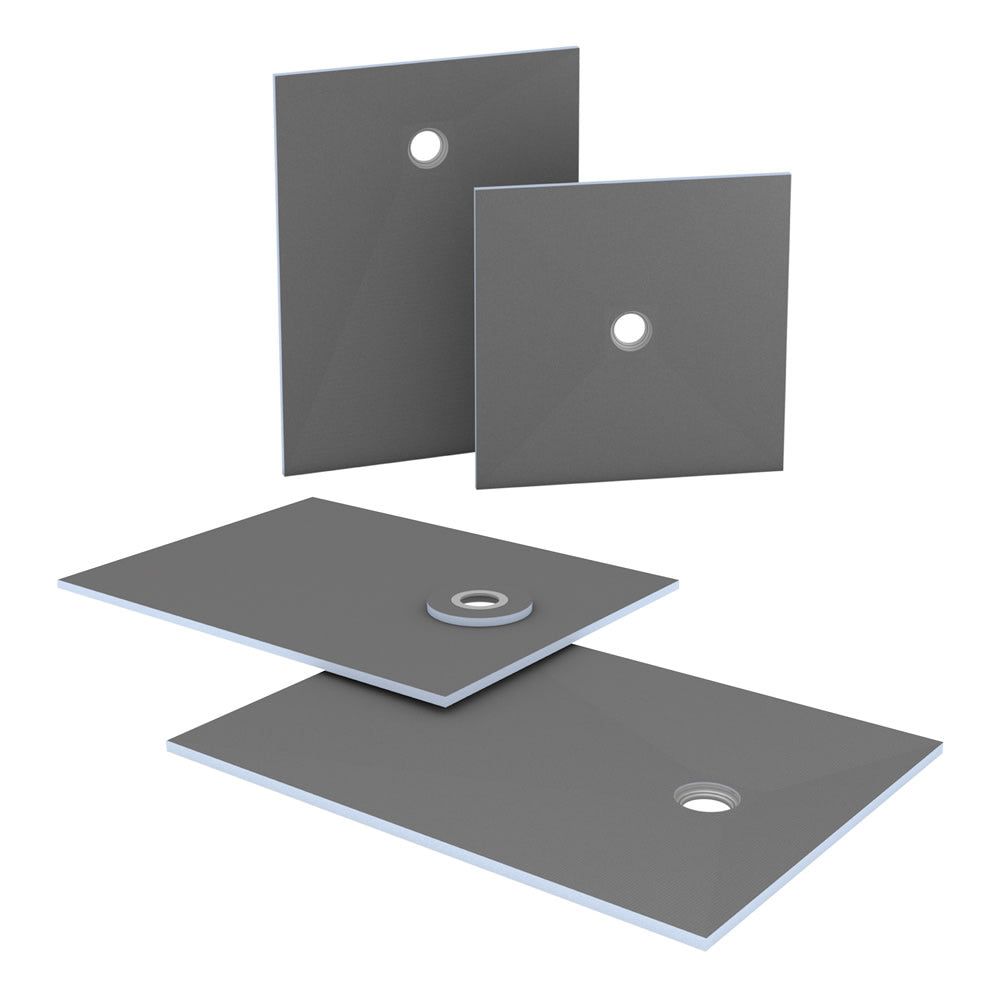

- Numerous configurations - Varying formats from 900 mm wide to 1600 mm long as well as different drain positions.
- Precisely pre-fabricated slope - The perfectly even slope ensures optimum tiling. It is at least 1.6%. Surface drainage is thereby guaranteed.
- Minimal weight - Due to the low weight of the floor element, the wooden flooring need only bear a minimal load and as a result the fitting is made significantly easier for the tradesperson or competent DIY installer.
- 100% waterproof through and through - Not just the special covering but also the XPS foam and drain are 100% waterproof in the entire system. wedi offers a guarantee for this.
- Decoupling effect - The floor elements do not transfer wooden subsurface movements on to the tiles. This decoupling function provides the tiles with lasting protection against cracks and damage.
- Barrier-free and wheelchair-accessible - The wheelchair accessibility of the Fundo Ligno floor elements is guaranteed even from a tile size of as little as 5 x 5 cm without any need for additional measures.
- Low Profile - Only 23mm deep at the outer edges.
Wedi Fundo Ligno PlusTechnical Data Sheet
Wedi Fundo Ligno Plus Fitting Instructions
Wedi Shower Elements BBA Certificate No:14/5126
wedi 610 Adhesive Sealant
wedi 610 adhesive sealant is a versatile single-component adhesive and sealant. It is used as a system component for the wedi sealing system.
Better to be safe than sorry. As a versatile single-component adhesive sealant, wedi 610 adhesive sealant is especially suited to waterproof butt joints of building boards. Furthermore, wedi 610 adhesive sealant has outstanding resistance to the elements; and to chemicals; and is also free of solvents, silicon and PCP.
For adhesion and sealing of wedi building boards and wedi Fundo elements. For attachment of various materials including wood, metals (aluminium, galvanised steel, high-grade steel, brass, copper), hard PVC, soft PVC and tiles to the wedi building board/Fundo system.
Full product details: wedi 610 Adhesive SealantWedi Fundo Sealing Set - Tanking / Waterproofing Kit
For sealing of joints in wet areas - but especially for sealing the whole perimeter of wedi Fundo shower elements and for waterpoof sealing of wedi to non-wedi
joints.The wedi Fundo sealing set consists of a 2-component slurry sealants and wedi Tool sealing tape/sealing corners for flexible joint sealing.
- Entire system is 100% waterproof
- Simple and safe to work with - tested by those in the trade
- The wedi Fundo Sealing set is sufficient for installing a Fundo base plus a Fundo shower partition
- Especially developed for the waterproof connection of Fundo shower elements to other non-wedi materials such as floor screed and plasterboard.
Wedi Fundo Standard Drain Substructure
The wedi Fundo drain substructure removes the need to set the drain body in a cement / screed base, whilst at the same time it is designed to reinforce and support.
Allowing for future easy access to the underfloor drain body, and a faster, easier installation, the Wedi Fundo drain substructure is suitable for use with the following Wedi Fundo wetroom elements:
Primo
Ligno
Borgo
100% waterproof
Manufactured from Wedi XPS
Please note: This sub-structure is NOT suitable for use with the Wedi Mini Max low profile drain.
