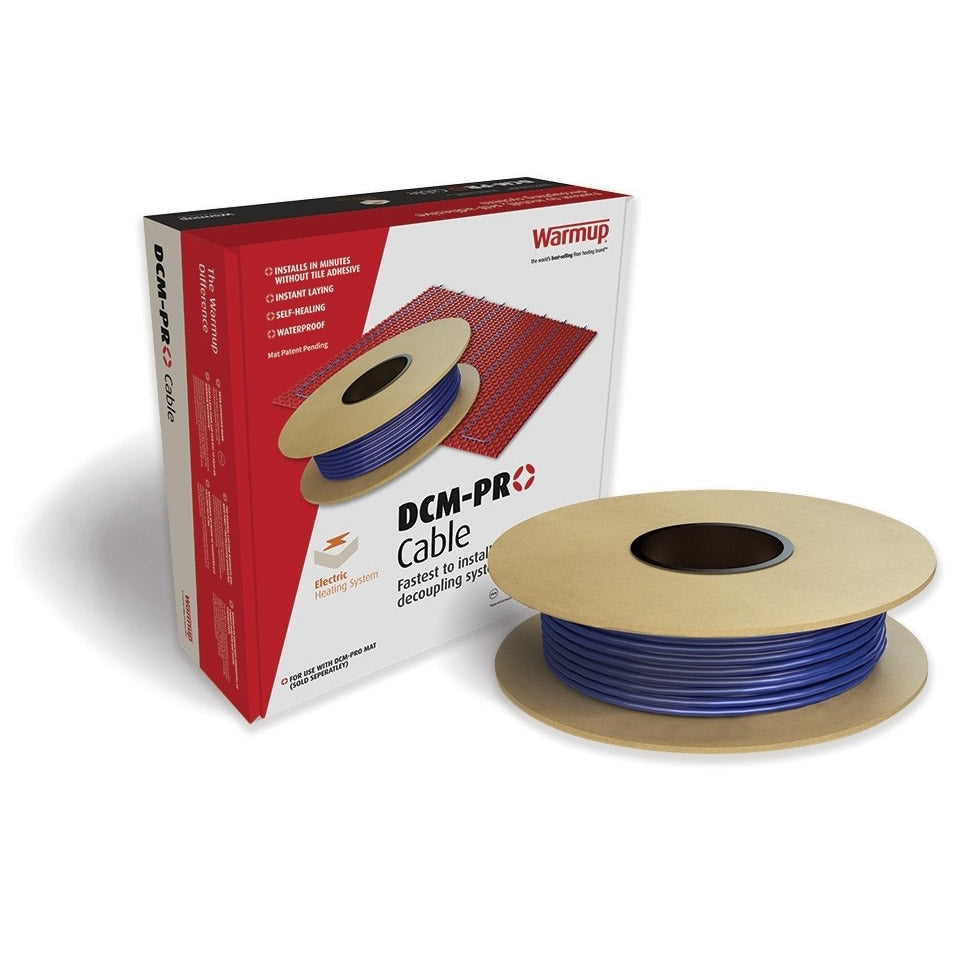

Warmup DCM-PRO System Electric Underfloor Heating Cable
SKU : DCM-C-1
You May Also Need
Selection Subtotal:
£88.00
Warmup® DCM-PRO System is the fastest way to install a heated decoupling system in all areas of the home; in fact, 40% faster than standard underfloor heating membranes. The patent pending self-adhesive underside of the mat acts as a self-healing decoupling layer and eliminates the need for an adhesive layer, reducing both time and costs.
The DCM-PRO System suits all floor types and protects the floor finish from seasonal changes that may cause cracks in the floor finish. The layer contracts and expands to deal with seasonal changes, preventing damage from occurring to the floor coverings due to the gaps and cracks in the subfloor.
It is recommended that the DCM-PRO system is installed on top of thermally insulated tile backer board. This provides a flat surface that is insulated against heat loss.

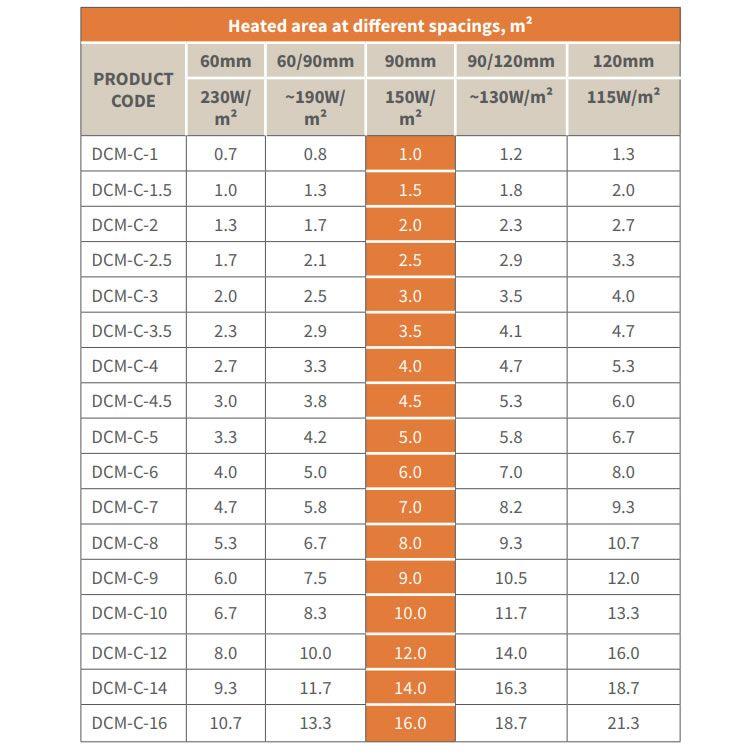

The DCM-PRO mat sticks directly on the insulation board, with no extra adhesive required. Based on the heat output required, the cable is laid and spaced out in the castellation’s accordingly. The clear sizing based on the castellation’s of the mat provides quick and easy planning for installation, 2m2 of cable fits exactly 2m2 of mat etc. Sizing can be adjusted to increase or decrease coverage and power (see Spacing Guide tab) . The DCM-PRO cable clips into the castellation’s of the DCM-PRO mat, no tools are required when installing the cable into the mat.>

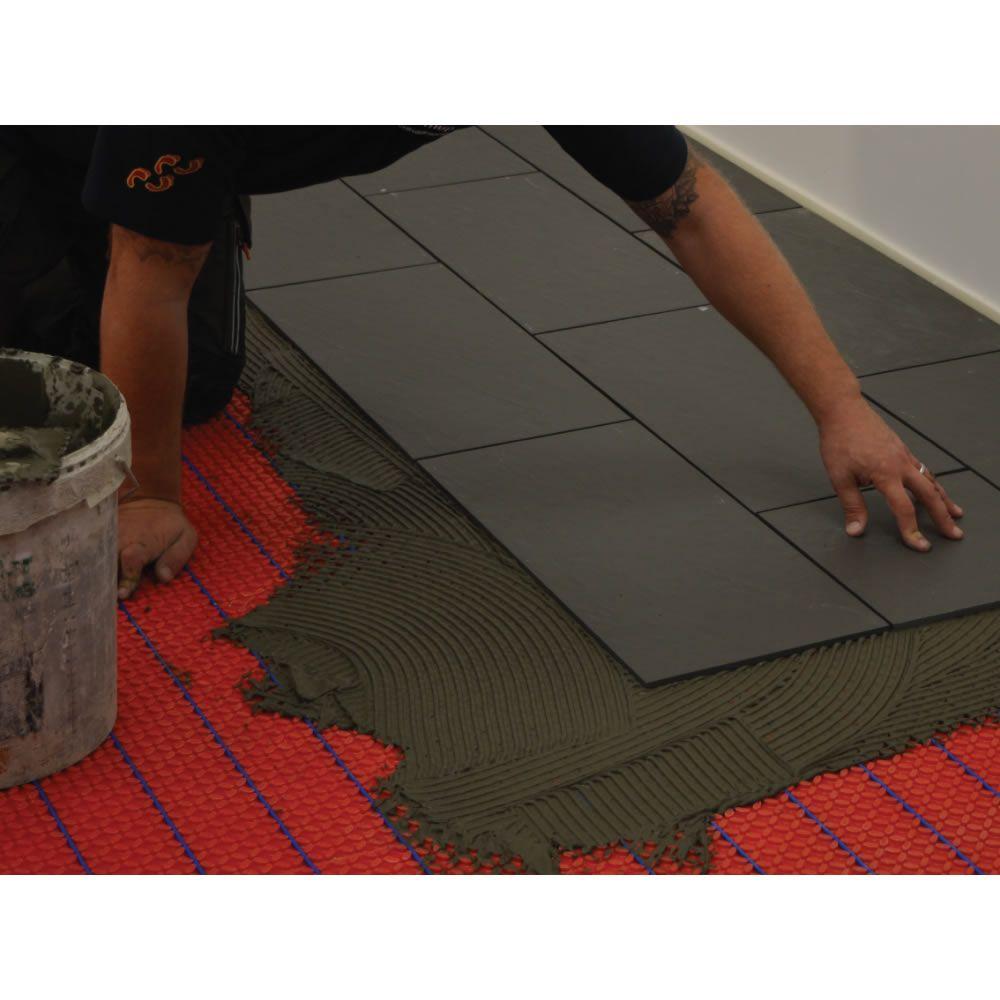

As soon as the mat is fitted, the cable is installed and cable resistance checked, tiling or self-levelling can be started. The DCM-PRO mat can be covered with flexible adhesive (for use with tiles) or self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl and carpet providing a constant output of 150wm2.
Technical Specification:
Cable:
- Operating voltage 220-240V: 50Hz
- IP Rating IPX7
- Colour Blue
- Thickness 4.5mm (± 0.2mm)
- Output rating 150w/m² (3 Castellations – 90mm)
- Inner Insulation Advanced Fluoropolymer (ETFE)
- Min. Insulation Temp 5°C
- Connection Advanced Fluoropolymer (ETFE)
Please note: This DCM-Pro Cable MUST be installed on the DCM-Pro membrane Mat.
Please note - This is the heating cable element only. The DCM-Pro membrane Mat is available separately.
Product Downloads:
Installation Manual
Technical Specification
CAD Section: Heating Mat - Sub Floors
Safety Net Installation Guarantee
If you accidentally damage the heating system during installation, return it to Warmup and they will replace it with another heater of the same make and model free.
- From 150 Watt - Adjust cable spacing to increase power
- Suitable for TILED or natural STONE floor finish

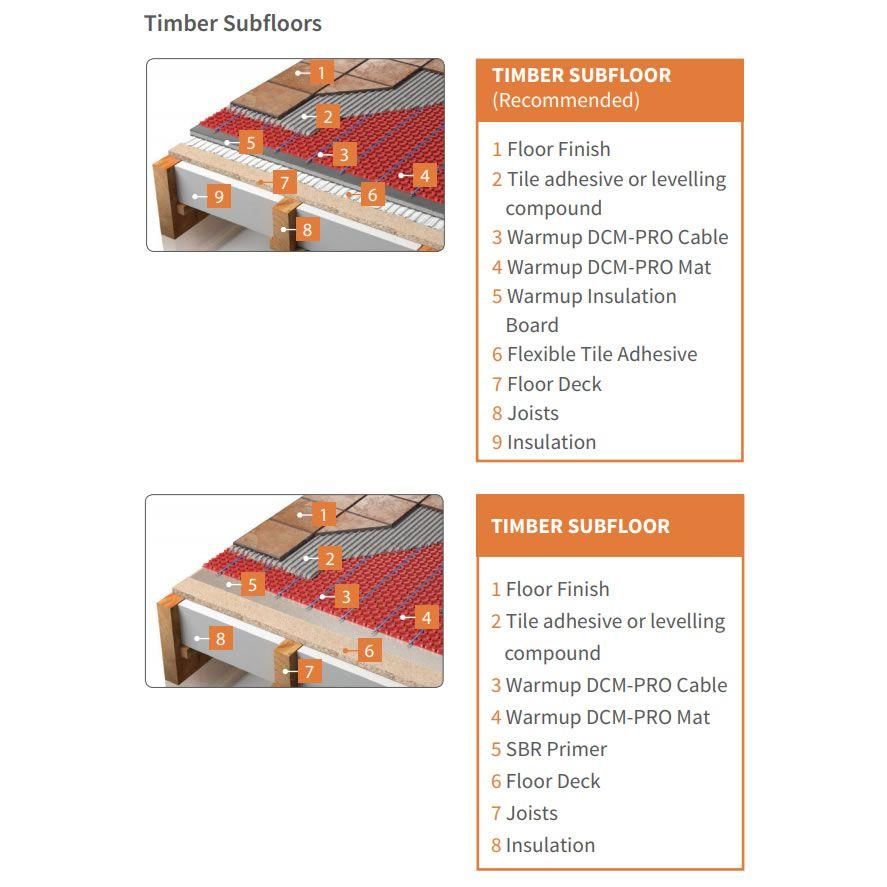

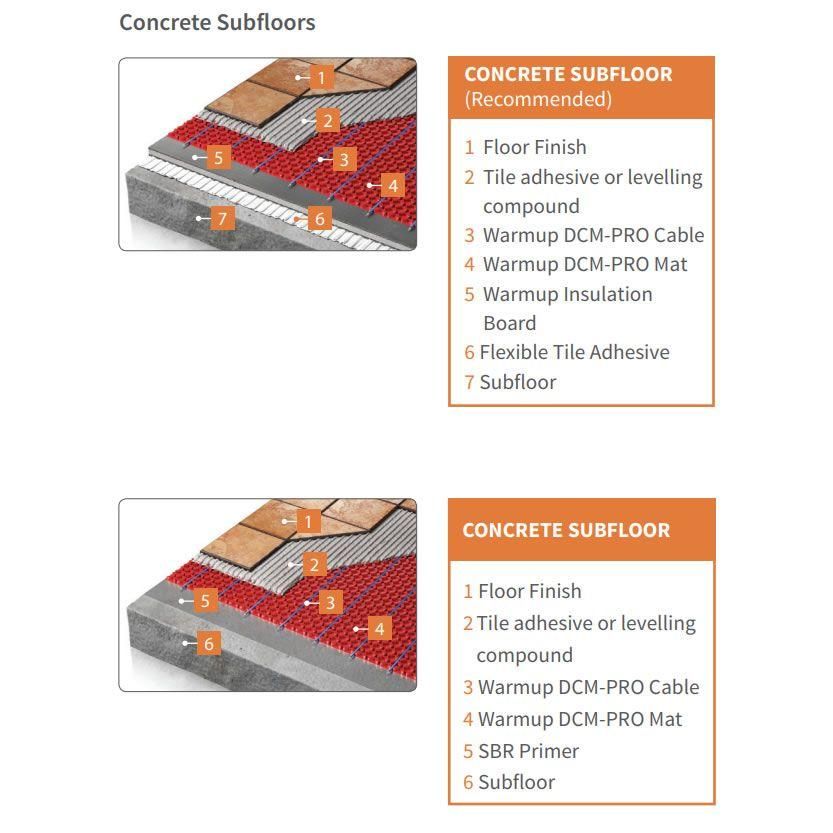

- For use on Slab, Screed, Concrete, Timber Suspended & Batten Floors sub floors
- Self adhesive Mat
- Single connection lead
- Mat only 5.5mm thick
- Safety Net Installation Guarantee - With the SafetyNet™ Guarantee, Warmup will replace
any damaged heater returned to store for a FREE replacement; no questions asked. - Lifetime Warranty. This product comes with a Lifetime Warranty.
- Warmup are completely confident in the standard of their products.
