Sunstone Underfloor Heating PVC Heating Mat - 200W
SKU : 2-SSMat 1.0
You May Also Need
Selection Subtotal:
£45.00

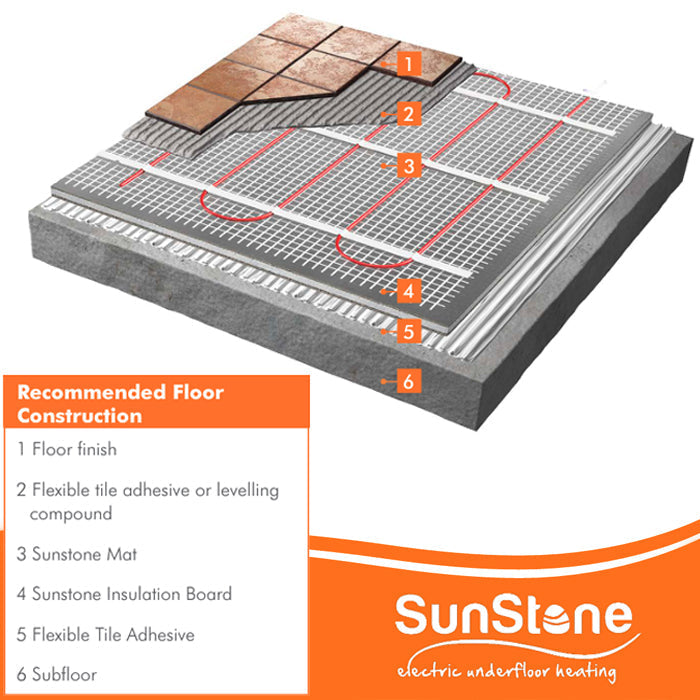

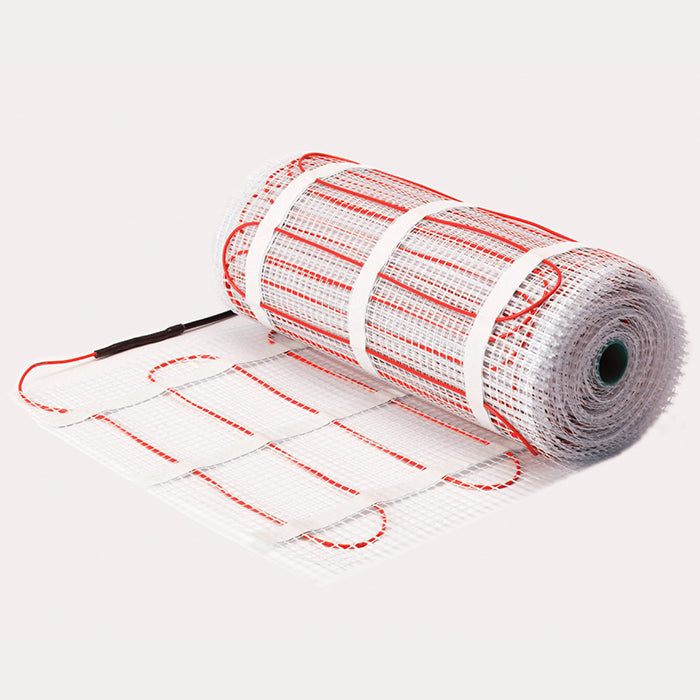

The Heat Mat is an energy-efficient electric floor heater that brings radiant warmth to cold bathroom floors. Ideal for use with stone or ceramic floor tiles, the Heat Mat offers a hassle-free installation and has little to no impact on floor heights. It features a pre-spaced, dual-core heating cable attached to a fibreglass mesh mat with an innovative adhesive backing which securely binds the mat to the subfloor.
The Heat Mat is available in a wide range of sizes, making it suitable for regular-shaped bathrooms of all styles.
Features:
- Quick installation times - features adhesive backing
- Low-profile heater - ideal for bathroom renovations
- Wide range of sizes
- CE and UKCA marked - highest safety standards
- 10 year warranty
Specification:
- Operating Voltage: 230 V AC : 50 Hz
- Output Rating: 200 W/m²
- Width: 500 mm (0.5 m)
- Cable Thickness: 3 mm
- Heating Cores: Single-strand, dual core
- Earth Protection: Copper earth wire with aluminium screen
- Inner Insulation: ETFE
- Outer Insulation: PVC
- IP Rating: IPX7
- Min. Installation Temperature: - 10 °C
- Connection: 3 m “coldtail” connection
Sunstone Heating Mat Size Guide
2-SSMAT - 200 W/m2 Mat Heater
| Model | Dimensions | Heated Area (m2) |
Power (W) |
Amperage (A) |
Resistance (Ω) |
Resistance Band (-5% Ω +5%) |
| 2-SSMat 1.0 | 0.5 x 2.0m | 1.0 | 200 | 0.87 |
264.5 |
251.3 - 277.7 |
| 2-SSMat 1.5 | 0.5 x 3.0m | 1.5 | 300 |
1.30 |
176.3 |
167.5 - 185.1 |
| 2-SSMat 2.0 | 0.5 x 4.0m | 2.0 | 400 |
1.74 |
132.3 |
125.7 - 138.9 |
| 2-SSMat 2.5 | 0.5 x 5.0m | 2.5 | 500 |
2.17 |
105.8 |
100.5 - 111.1 |
| 2-SSMat 3.0 | 0.5 x 6.0m | 3.0 | 600 |
2.61 |
88.2 |
83.8 - 92.6 |
| 2-SSMat 3.5 | 0.5 x 7.0m | 3.5 | 700 |
3.04 |
75.6 |
71.8 - 79.4 |
| 2-SSMat 4.0 | 0.5 x 8.0m | 4.0 | 800 |
3.48 |
66.1 |
62.8 - 69.4 |
| 2-SSMat 4.5 | 0.5 x 9.0m | 4.5 | 900 |
3.91 |
58.8 |
55.9 - 61.7 |
| 2-SSMat 5.0 | 0.5 x 10.0m | 5.0 | 1000 |
4.35 |
52.9 |
50.3 - 55.5 |
| 2-SSMat 6.0 | 0.5 x 12.0m | 6.0 | 1200 |
5.22 |
44.1 |
41.9 - 46.3 |
| 2-SSMat 7.0 | 0.5 x 14.0m | 7.0 | 1400 |
6.09 |
37.8 |
35.9 - 39.7 |
| 2-SSMat 8.0 | 0.5 x 16.0m | 8.0 | 1600 |
6.96 |
33.1 |
31.4 - 34.8 |
| 2-SSMat 9.0 | 0.5 x 18.0m | 9.0 | 1800 |
7.83 |
29.4 |
27.9 - 30.9 |
| 2-SSMat 10.0 | 0.5 x 20.0m | 10.0 | 2000 |
8.70 |
26.5 |
25.2 - 27.8 |
| 2-SSMat 15.0 | 0.5 x 30.0m | 15.0 | 3000 |
13.04 |
17.6 |
16.7 - 18.5 |
