Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 1200mm
SKU : 6000250/6000285
You May Also Need
Selection Subtotal:
£320.00
The J-Drain from Jackoboard is a clever and innovative linear wet room shower drain, that is designed to be fitted into the floor creating a level, walk in shower area, whilst being of a minimalist, unobtrusive design.
The J-Drain can be located anywhere in the floor (subject to underfloor obstructions), however, it is particularly suited to installation almost right up against the wall, thanks to its design.

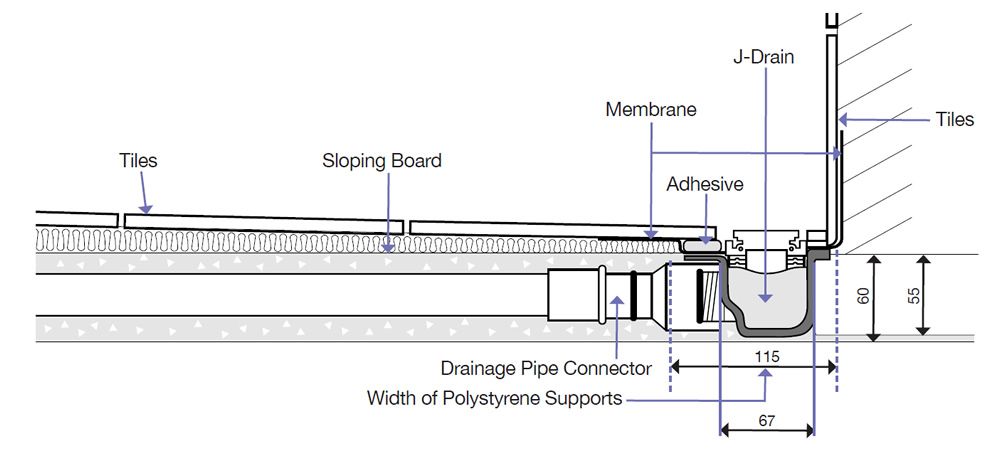

With an installation depth of only 55mm, the J-Drain is suitable for new builds and renovation projects.
The cover grate is manufactured from stainless steel and is adjustable to accommodate a wide range of tile heights. Simply reverse the grate to tile the grate to match the remainder of the floor. The grate is easily removed to provide quick access to the drain body for the easy removal of debris and hair. An optional Matte Black (non reversible / non tileable) drain channel is also available.

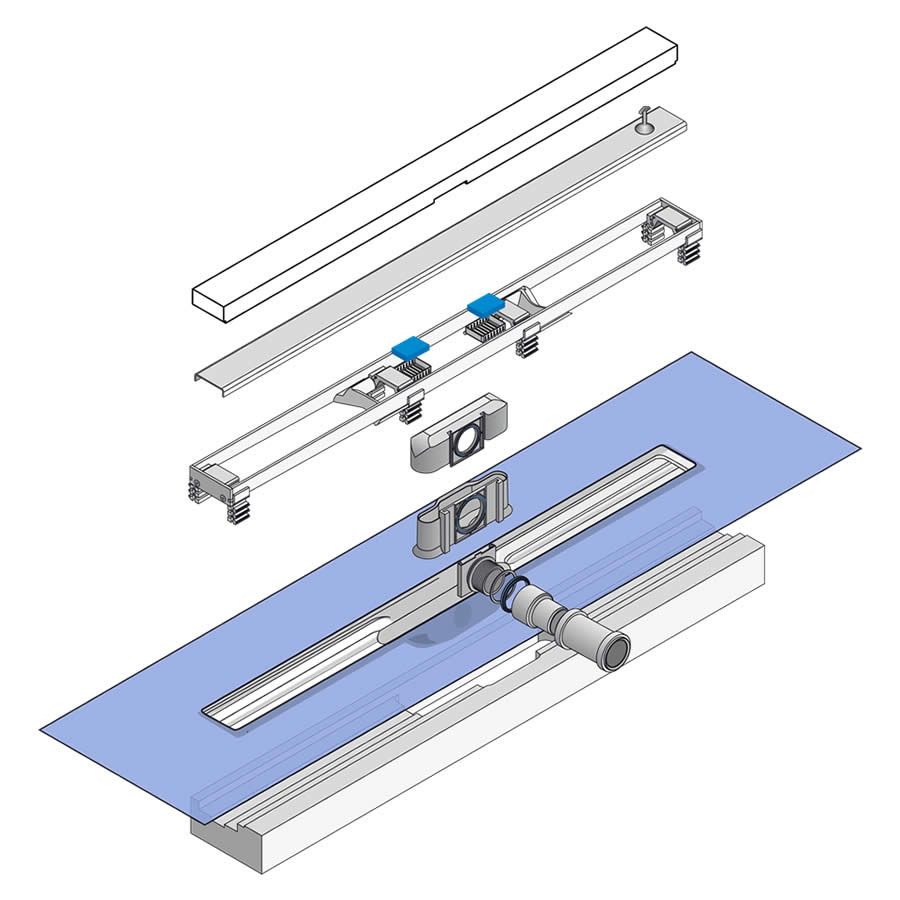

The Jackoboard J-Drain linear wet room shower floor drain channel incorporates a flange on all four sides of the J-Drain body. This is particularly useful in wooden floors and/or when a perfect seal is necessary. The tiles surrounding the drain are fixed down onto the flange creating an excellent seal. A liquid tanking kit is available as an optional extra which is painted onto the glued down flange. This extends the protected area around the drain.
The slope to the J-Drain only needs to be in one direction, and this is easily achieved with the use of Jackoboard Sloping Board.
If shower area is to be wheelchair accessible, tiles should be a minimum 50mm square.
*IMPORTANT: The length and width stated are the actual size of the visible (stainless steel) drain channel, in the tiled floor finish. The actual channel body size extends by approx. 30mm at each end and 26mm on each side beneath the tiled finish, please see image below. Please consider this when planning your drain positioning.
Available in the following lengths:
- 600mm
- 700mm
- 800mm
- 900mm
- 1000mm
- 1200mm
Product Downloads:
J-Drain Installation Instructions: Solid & Timber Floor
J-Drain Product Sheet
- Length: 1200mm* (Total length: 1260mm)
- Depth: 56mm
- Width: 62mm*(Total width: 115mm
- Brushed Stainless steel grate cover as standard
- Optional Matte Black grate cover
- Fully tileable drain cover(Stainless Steel finish only
- Drain Throughput: 27 l/min
- Integrated waterproof skirting membrane
- Suitable for both wooden and concrete / screed floors
- Designed and manufactured in the EU
- 10 years guarantee if fitted in accordance with manufacturer’s instructions
*IMPORTANT: The length and width stated are the actual size of the visible (stainless steel) drain channel, in the tiled floor finish. The actual channel body size extends by approx. 30mm at each end and 26mm on each side beneath the tiled finish, please see image below. Please consider this when planning your drain positioning.

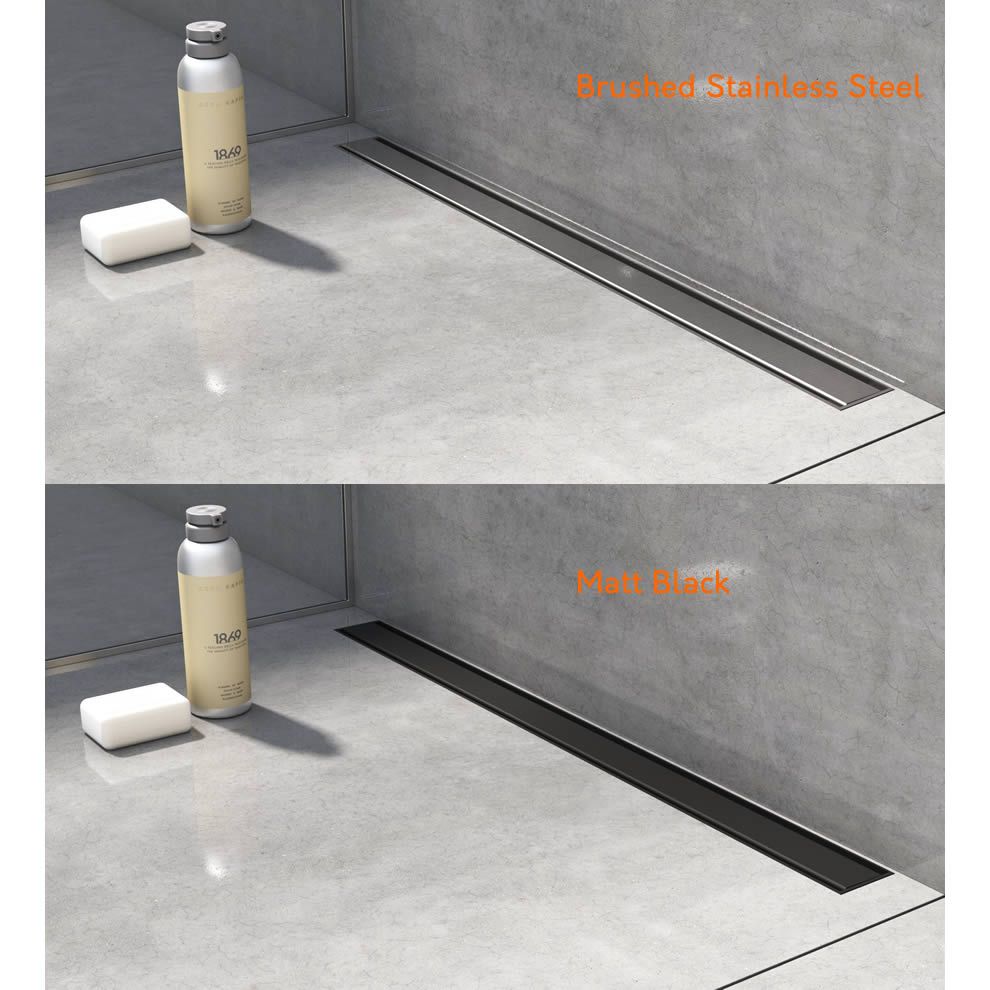

Fully Reversible & Tileable Stainless Steel Drain Cover:

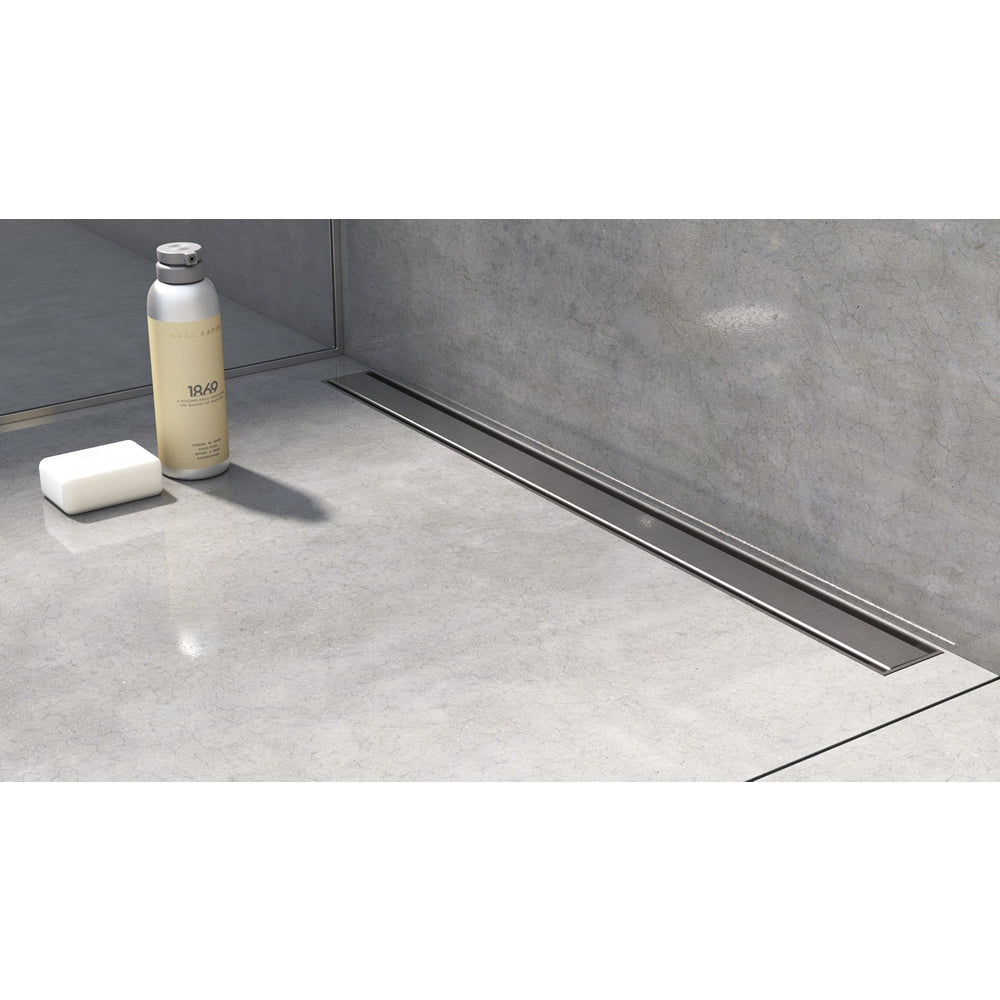

The upside of the stainless steel drain cover is a brushed stainless-steel finish, if you prefer to tile the drain cover to match the surrounding floor, simply turn it over and tile to match. The drain channel is a fixed height of approx. 15mm, suitable for use with 10mm thick tiles. The height of the drain cover can be raised using the simple 'lug' set provided with the drain cover.

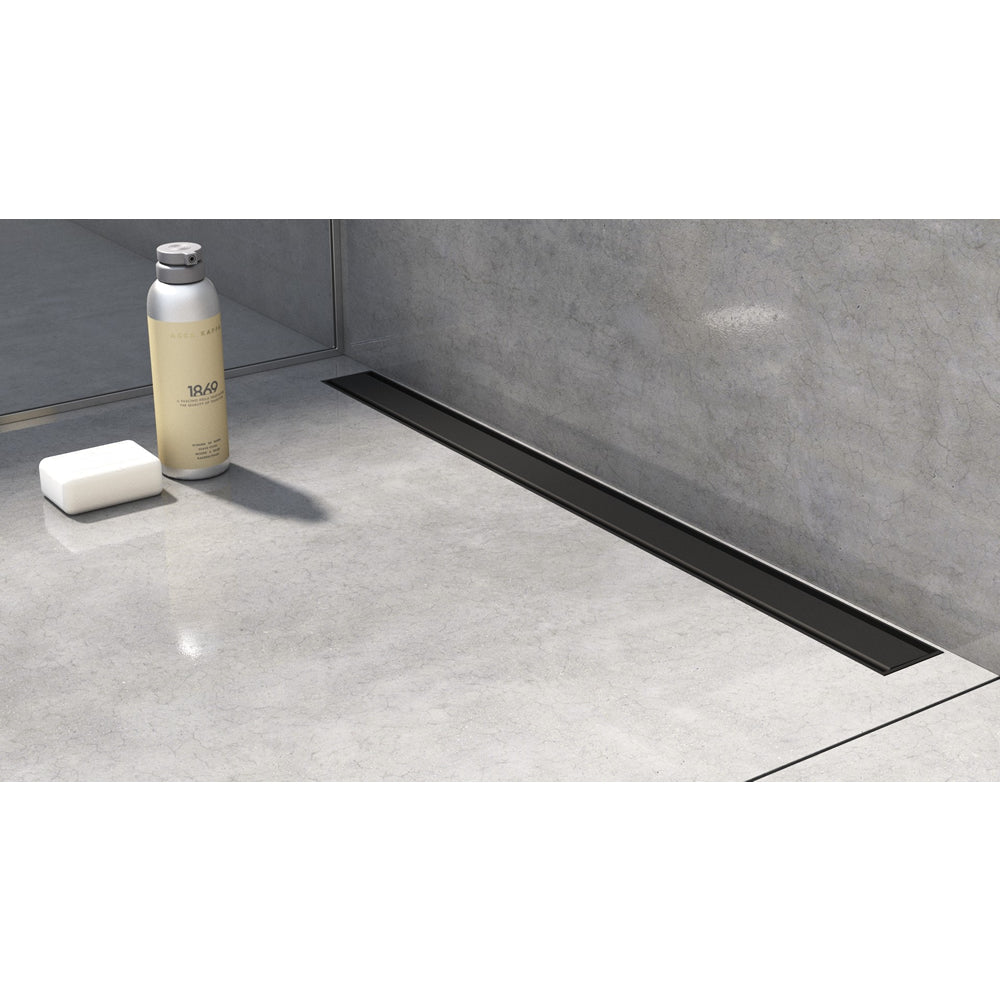

An optional Matte Black (non reversible / non tileable) drain cover and surround is also available to purchase.
Jackoboard Plano Insulated Tile Backer Board
Jackoboard Plano Insulated Tile Backer Board is the ideal board for boarding out wet room floors and walls prior to tiling. Thanks to their extruded polystyrene foam core and the special coating on both sides, the JACKOBOARD® construction boards are the ideal base for plaster and tile. The surfaces of the JACKOBOARD® system provide a strong primer and can be used on virtually any substrate. At the same time, they are water repellent, thermally insulating, light and sturdy.
Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).
JACKOBOARD® Plano. The construction boards can be cut to any desired shape and to any dimension. Thanks to the different thicknesses, there is no limit to the design flexibility of the construction boards for wall, floor and construction applications. They can be used on virtually any substrate and master every challenge thanks to their easy use.
- Use on Walls & Floors
- Tiling
- Under Floor Heating
- Wet Rooms, Walk in Showers, Spas
Each board measures 600 x 1200mm. Available in 6mm, 10mm, 12mm, 20mm & 30mm thickness
Full product details: Jackoboard Plano Insulated Tile Backer Board
Jackoboard Paint-On Tanking Kit:
The Jackoboard tanking kit contains a rapid drying, brush/roller applied, single part flexible liquid membrane for use on rigid surfaces in bathrooms, wetrooms and showers. It can also be used to waterproof existing surfaces such as plaster, plasterboard or timber.
Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).
For use under ceramic coverings in wet rooms, showers and bathrooms. Coverage 5 - 6sqm under normal conditions with recommended two coats.
- 1 x 4KG Tanking liquid
- 1 x 1 Litre Primer Liquid
- 1 x 10 metre tape for wall and floor joints
- 2 x Internal sealing corners
Full product details: Jackoboard Wet Room Tanking Kit
Jackoboard Wedgeboard Sloping Tile Backer Board:
Jackoboard Wedgeboard is a tile backer board with an in-built slope. It is ideal for creating a wet room floor using a linear drain channel, as the correct slope for the efficient drainage of water is present. Simply tile the floor. If to be wheelchair accessible minimum tile size is 50mm x 50mm.
The Jackoboard Wedgeboard can be laid on top of existing concrete or wooden floors. The water repellent and insulation properties of Wedgeboard make it the ideal substrate for tiling onto.
Board Sizes:
- Size 1000 x 1000mm - Slopes from 20mm to 7mm
- Size 1200 x 900mm - Slopes from 25mm to 8mm
- Size 1600 x 1000mm - Slopes from 25mm to 7mm
Full product details: Jackoboard Wedgeboard Sloping Tile Backer Board
The J-Drain from Jackoboard is a clever and innovative linear wet room shower drain, that is designed to be fitted into the floor creating a level, walk in shower area, whilst being of a minimalist, unobtrusive design.
The J-Drain can be located anywhere in the floor (subject to underfloor obstructions), however, it is particularly suited to installation almost right up against the wall, thanks to its design.
With an installation depth of only 55mm, the J-Drain is suitable for new builds and renovation projects.
The cover grate is manufactured from stainless steel and is adjustable to accommodate a wide range of tile heights. Simply reverse the grate to tile the grate to match the remainder of the floor. The grate is easily removed to provide quick access to the drain body for the easy removal of debris and hair. An optional Matte Black (non reversible / non tileable) drain channel is also available.
The Jackoboard J-Drain linear wet room shower floor drain channel incorporates a flange on all four sides of the J-Drain body. This is particularly useful in wooden floors and/or when a perfect seal is necessary. The tiles surrounding the drain are fixed down onto the flange creating an excellent seal. A liquid tanking kit is available as an optional extra which is painted onto the glued down flange. This extends the protected area around the drain.
The slope to the J-Drain only needs to be in one direction, and this is easily achieved with the use of Jackoboard Sloping Board.
If shower area is to be wheelchair accessible, tiles should be a minimum 50mm square.
*IMPORTANT: The length and width stated are the actual size of the visible (stainless steel) drain channel, in the tiled floor finish. The actual channel body size extends by approx. 30mm at each end and 26mm on each side beneath the tiled finish, please see image below. Please consider this when planning your drain positioning.
Available in the following lengths:
- 600mm
- 700mm
- 800mm
- 900mm
- 1000mm
- 1200mm
Product Downloads:
J-Drain Installation Instructions: Solid & Timber Floor
J-Drain Product Sheet
- Length: 1200mm* (Total length: 1260mm)
- Depth: 56mm
- Width: 62mm*(Total width: 115mm
- Brushed Stainless steel grate cover as standard
- Optional Matte Black grate cover
- Fully tileable drain cover(Stainless Steel finish only
- Drain Throughput: 27 l/min
- Integrated waterproof skirting membrane
- Suitable for both wooden and concrete / screed floors
- Designed and manufactured in the EU
- 10 years guarantee if fitted in accordance with manufacturer’s instructions
*IMPORTANT: The length and width stated are the actual size of the visible (stainless steel) drain channel, in the tiled floor finish. The actual channel body size extends by approx. 30mm at each end and 26mm on each side beneath the tiled finish, please see image below. Please consider this when planning your drain positioning.
Fully Reversible & Tileable Stainless Steel Drain Cover:
The upside of the stainless steel drain cover is a brushed stainless-steel finish, if you prefer to tile the drain cover to match the surrounding floor, simply turn it over and tile to match. The drain channel is a fixed height of approx. 15mm, suitable for use with 10mm thick tiles. The height of the drain cover can be raised using the simple 'lug' set provided with the drain cover.
An optional Matte Black (non reversible / non tileable) drain cover and surround is also available to purchase.
Jackoboard Plano Insulated Tile Backer Board
Jackoboard Plano Insulated Tile Backer Board is the ideal board for boarding out wet room floors and walls prior to tiling. Thanks to their extruded polystyrene foam core and the special coating on both sides, the JACKOBOARD® construction boards are the ideal base for plaster and tile. The surfaces of the JACKOBOARD® system provide a strong primer and can be used on virtually any substrate. At the same time, they are water repellent, thermally insulating, light and sturdy.
Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).
JACKOBOARD® Plano. The construction boards can be cut to any desired shape and to any dimension. Thanks to the different thicknesses, there is no limit to the design flexibility of the construction boards for wall, floor and construction applications. They can be used on virtually any substrate and master every challenge thanks to their easy use.
- Use on Walls & Floors
- Tiling
- Under Floor Heating
- Wet Rooms, Walk in Showers, Spas
Each board measures 600 x 1200mm. Available in 6mm, 10mm, 12mm, 20mm & 30mm thickness
Full product details: Jackoboard Plano Insulated Tile Backer Board
Jackoboard Paint-On Tanking Kit:
The Jackoboard tanking kit contains a rapid drying, brush/roller applied, single part flexible liquid membrane for use on rigid surfaces in bathrooms, wetrooms and showers. It can also be used to waterproof existing surfaces such as plaster, plasterboard or timber.
Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).
For use under ceramic coverings in wet rooms, showers and bathrooms. Coverage 5 - 6sqm under normal conditions with recommended two coats.
- 1 x 4KG Tanking liquid
- 1 x 1 Litre Primer Liquid
- 1 x 10 metre tape for wall and floor joints
- 2 x Internal sealing corners
Full product details: Jackoboard Wet Room Tanking Kit
Jackoboard Wedgeboard Sloping Tile Backer Board:
Jackoboard Wedgeboard is a tile backer board with an in-built slope. It is ideal for creating a wet room floor using a linear drain channel, as the correct slope for the efficient drainage of water is present. Simply tile the floor. If to be wheelchair accessible minimum tile size is 50mm x 50mm.
The Jackoboard Wedgeboard can be laid on top of existing concrete or wooden floors. The water repellent and insulation properties of Wedgeboard make it the ideal substrate for tiling onto.
Board Sizes:
- Size 1000 x 1000mm - Slopes from 20mm to 7mm
- Size 1200 x 900mm - Slopes from 25mm to 8mm
- Size 1600 x 1000mm - Slopes from 25mm to 7mm
Full product details: Jackoboard Wedgeboard Sloping Tile Backer Board
Jackoboard
JACKOBOARD® are one of the leading manufacturers of XPS (extruded polystyrene foam) solutions offering a wide range of XPS foam insulation boards, wet room trays and building board solutions.
Designed & manufactured in Germany, market leading JACKOBOARD® Plano construction boards, building system and wet room trays are water-repellent and easy to work with. Finished with a special coating, they are ready to be tiled, rendered or plastered.
