Jackoboard Aqua Flat Wet Room Walk In Shower Tray & Drain - CENTRE DRAIN - 1000 x 1000 x 20mm

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

To Here (this label will be hidden)

JACKOBOARD® Aqua Flat is a wet room / walk-in shower element which is particularly well suited for use on wooden beam ceilings. Thanks to the extremely low thickness of only 20 mm, Aqua Flat can easily be integrated in the timber framework so that it is installed flush with the wooden floor. Whilst the tray has been specifically designed to create wet rooms and walk in showers in properties with suspended floors, you can also install the system in a solid concrete / screed floor.

The shower base is made from extruded polystyrene foam (XPS) which has been machined to create a fall from the perimeter edges to the drain position. The base has then been covered on both sides with a polymer modified cement coating into which has been bonded a reinforcing fibre glass mesh. This coating provides both excellent point loading resistance and a superb bond for cement based tiled adhesives. Crucially, the whole base is completely waterproof and dimensionally stable - it is not affected by moisture, humidity or movement in the substrate.

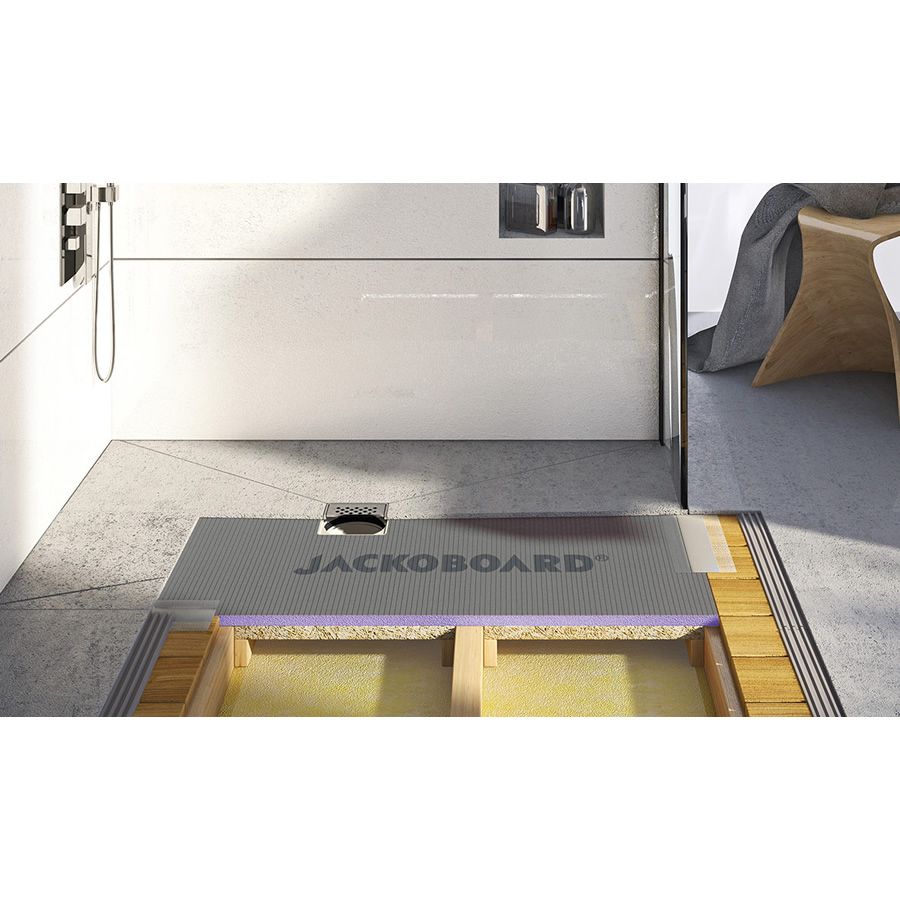

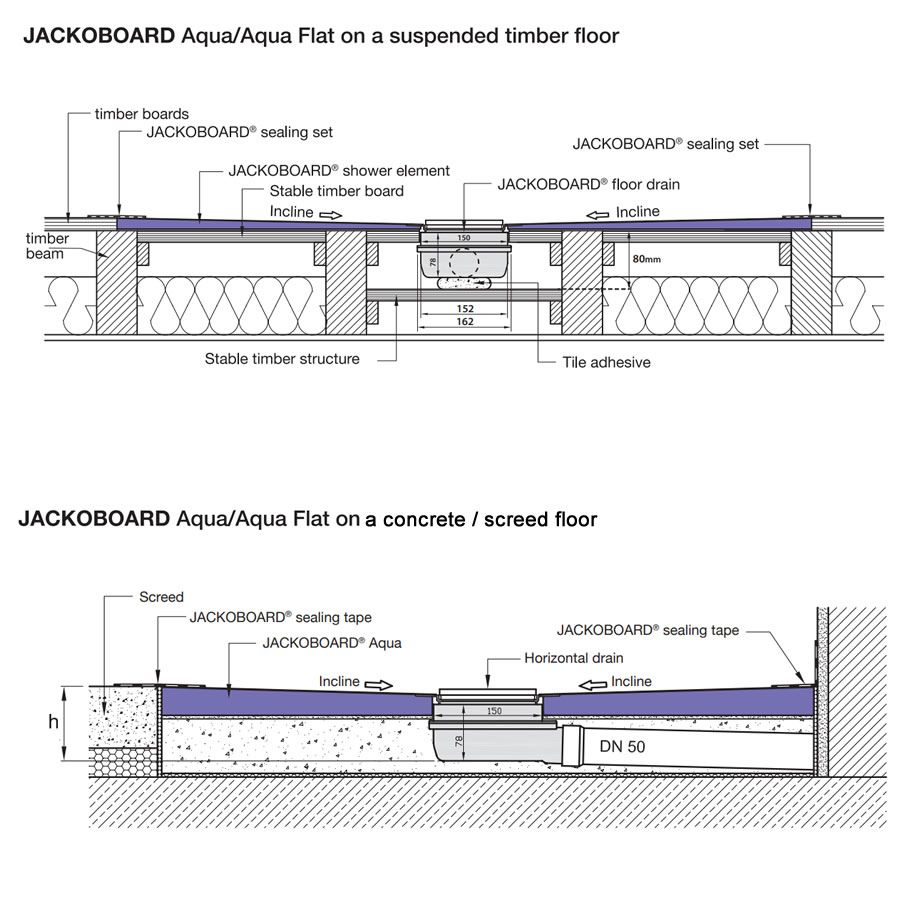

It’s important to understand that Jackoboard Aqua Flat wet room bases, in common with other extruded polystyrene bases, are not self-supporting. In order to support the base firmly when creating a level-entry design on a suspended timber floor, a sub-floor must be constructed between the joists.

Due to its excellent thermal insulation properties the Jackoboard Aqua Flat is the perfect substrate for the laying of underfloor heating mats, helping to keep the warmth in the room intended.

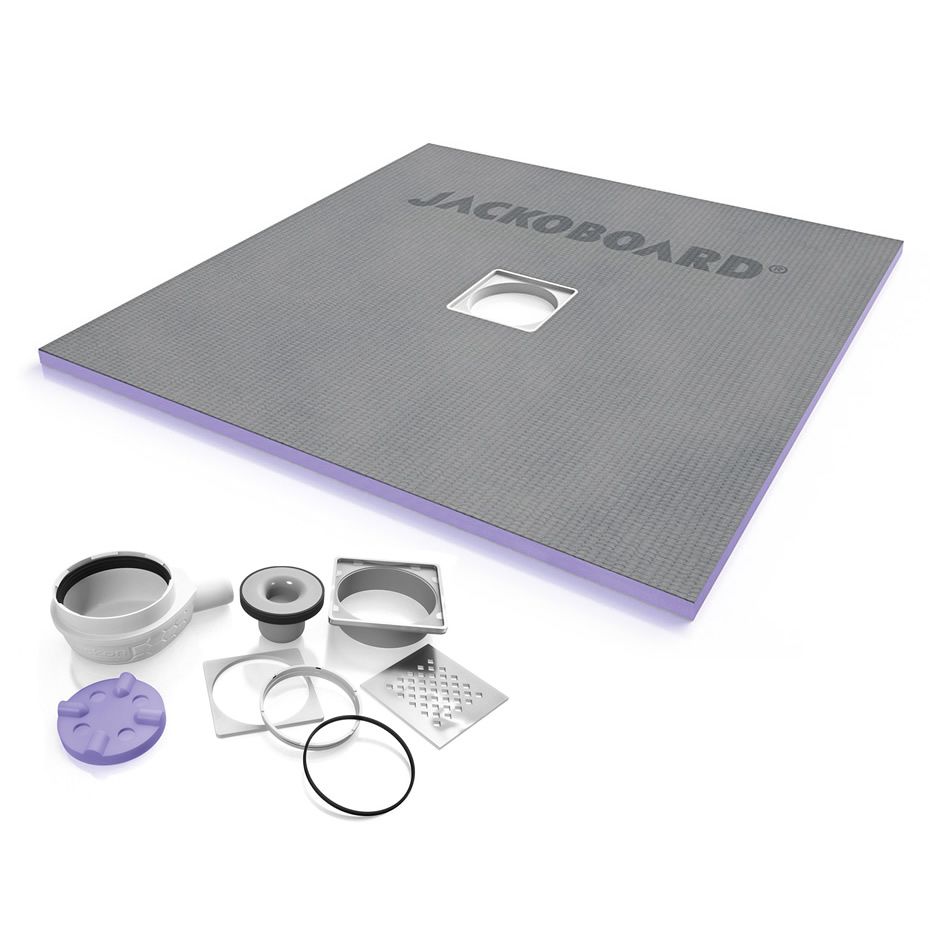

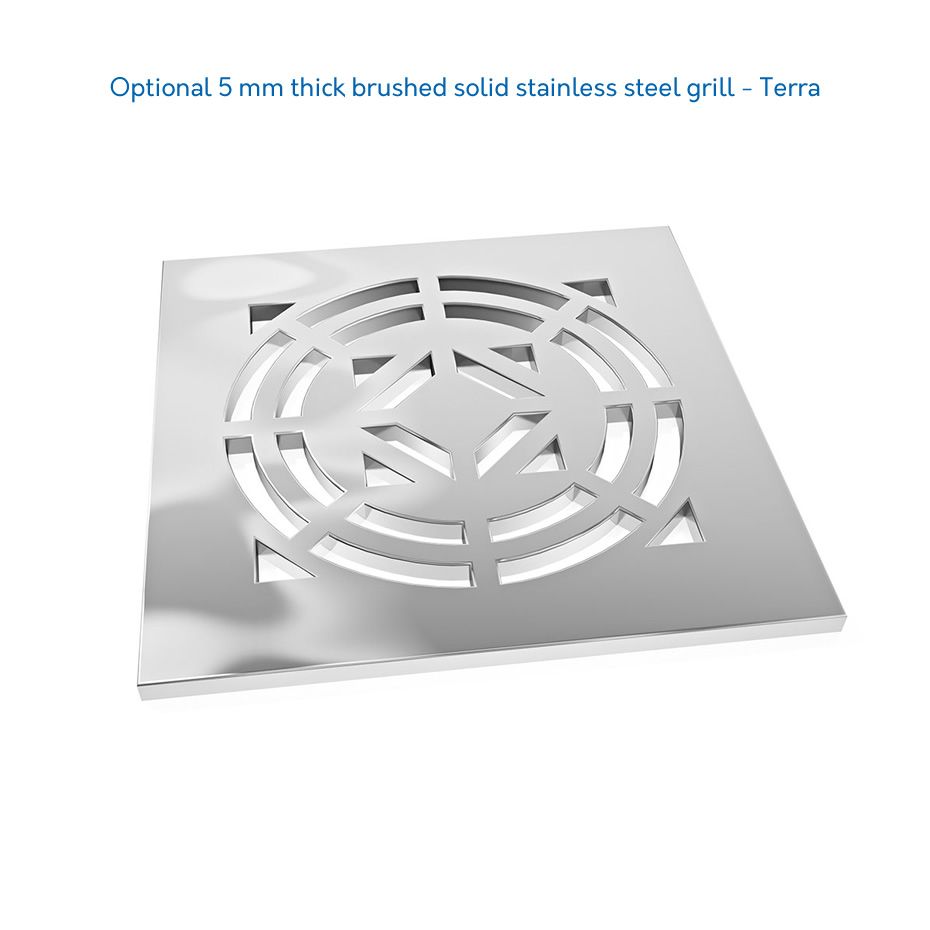

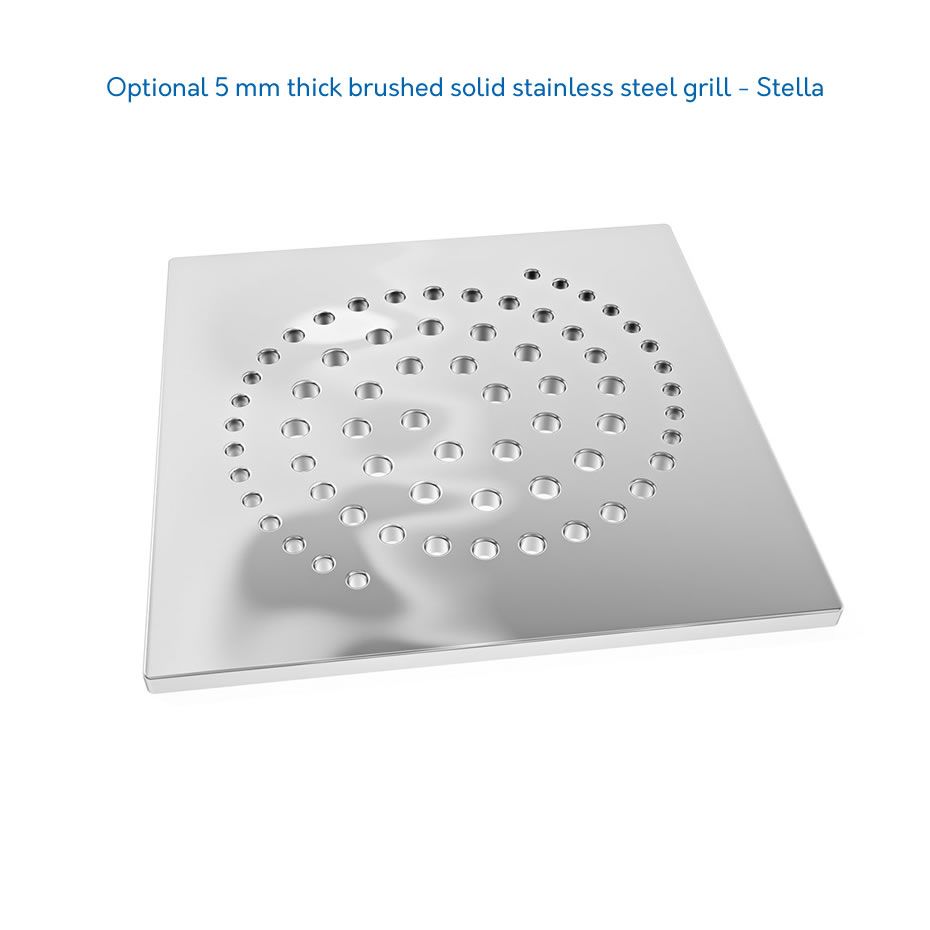

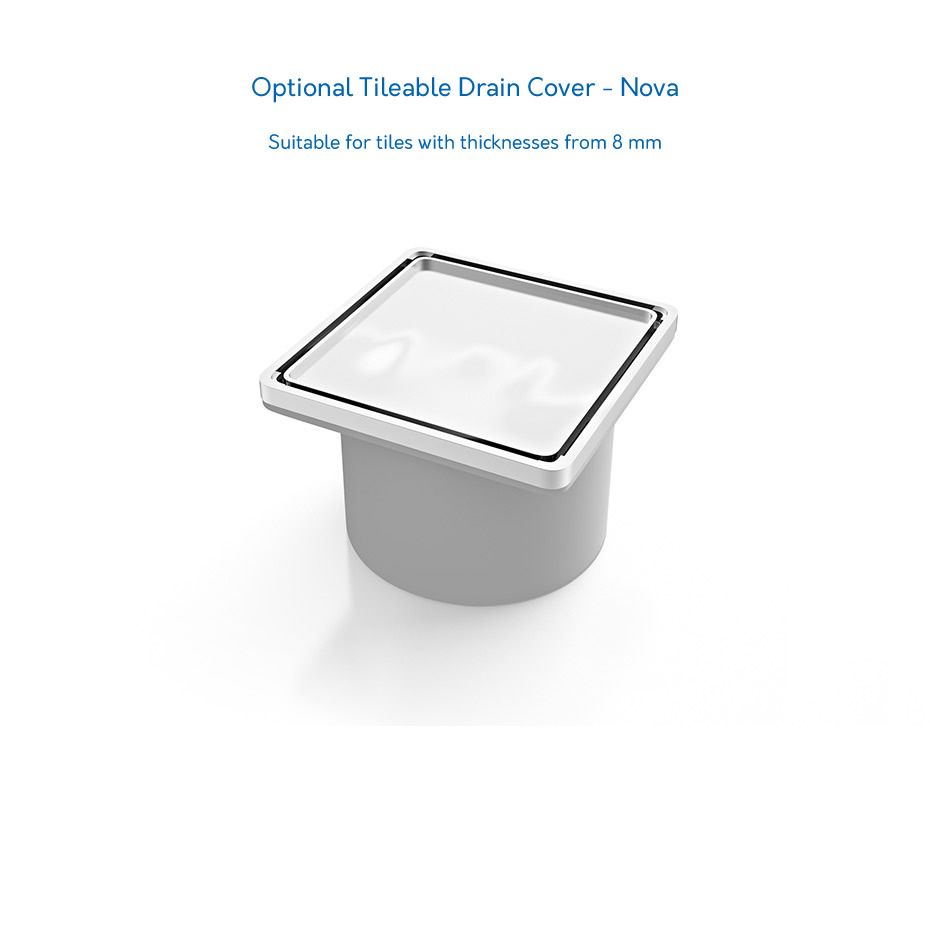

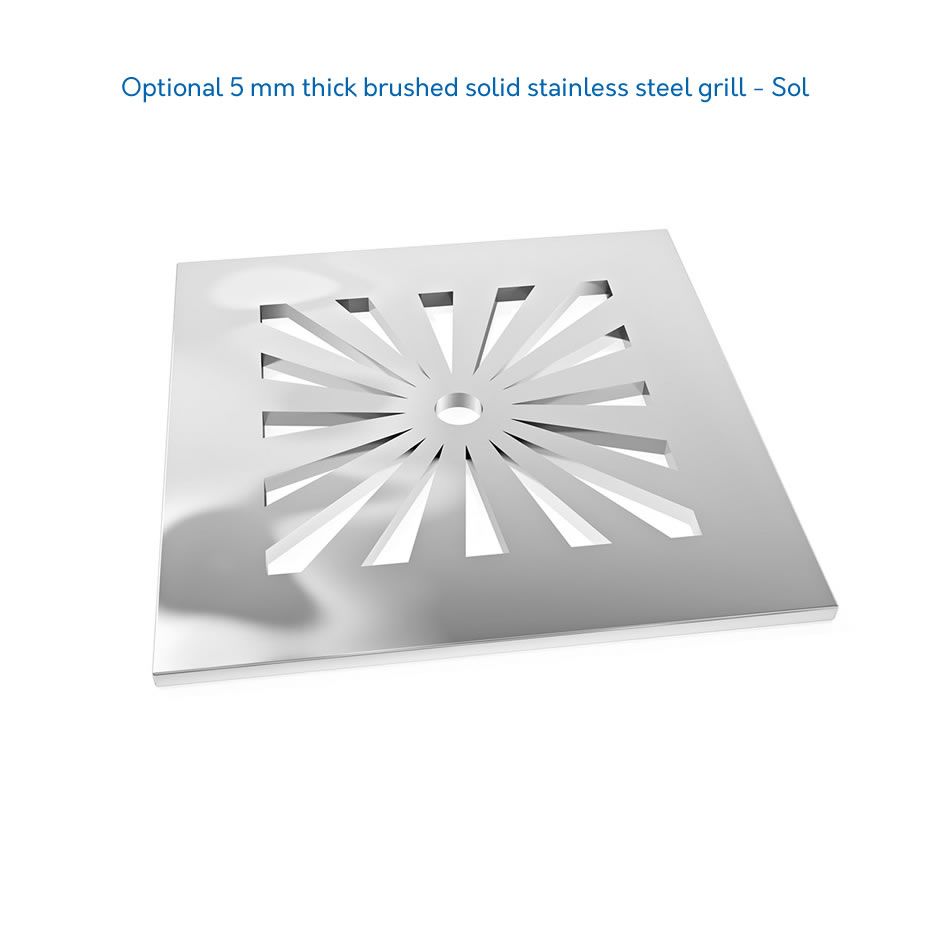

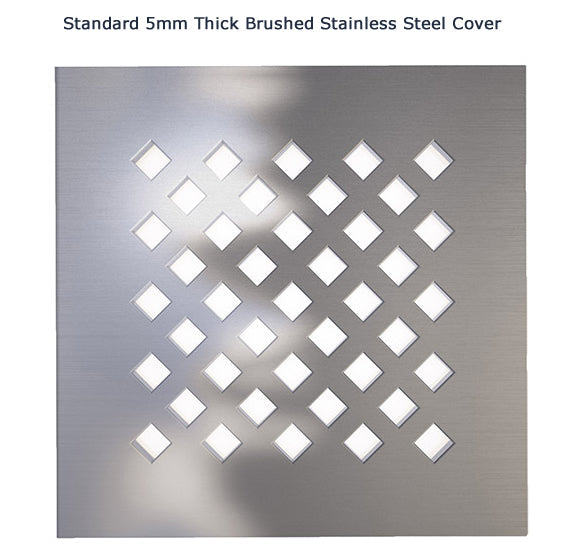

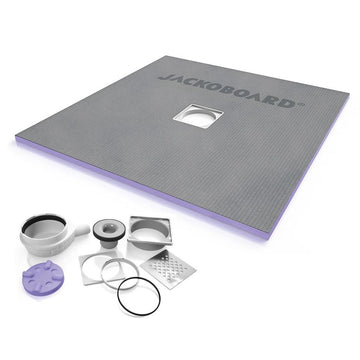

The Aqua Flat walk in shower tray comes complete with a horizontal drain (flow rate > 0.9 l/s), a vertical option is available upon request. Optional brushed solid stainless steel (5mm thick) drain covers are available. A tileable drain cover is also available to replace the grate, edged with stainless steel upstand, suitable for tiles with a thickness from 8mm.

Important Tiling Information:

• Jackoboard Aqua Flat shower bases are in principle suitable for all types and sizes of ceramic and stone tiles. However, for mosaic tiles less than 25mm square we strongly recommend the application of an epoxy resin grout for the tile joints.
• Tiles must be fixed using cement based single part flexible tile adhesive. Pre-mixed ‘tub’ adhesives must not be used.
• The grout line around the drain grate frame should be sealed with a flexible sanitary sealant (silicone) and not a cement-based grout.
• If showers are to be wheelchair accessible tiles must be a minimum of 50mm square.

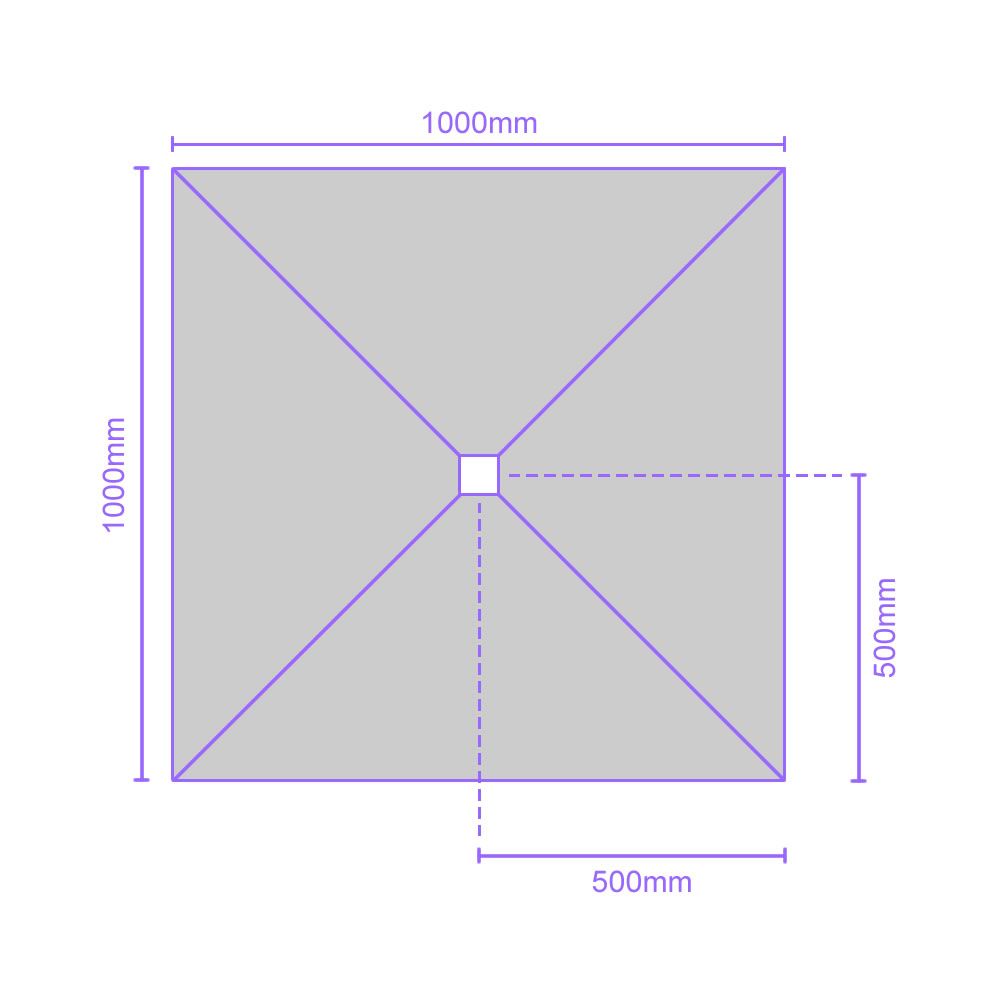

• Tiles larger than 150mm square must be cut to follow the valleys of the falls, which always run from the drain position to the corners.

If in doubt about any of the above points, or tiling in general please consult a professional tiler.

The Jackoboard Aqua Flat wet room former is BBA approved. The products have been assessed by the BBA as being fit for their intended use provided they are installed, used and maintained as set out in the Certificate: Agrément Certificate 16/5312
Key factors assessed:
Water-tightness — the products will provide a waterproof shower area (see section 6).Bond strength — when used with a suitable adhesive, the adhesion of the products to the substrate, and of the tiles to the products is satisfactory (see section 7).
Resistance to mechanical damage — the products have satisfactory resistance to mechanical damage (see section 8).
Durability — the products will have a service life of at least 10 years
Agrément Certificate 16/5312
