Impey - Stainless Steel Tiled Floor Drain Gully Horizontal Outlet
SKU : UTT01/H
Selection Subtotal:
£197.70

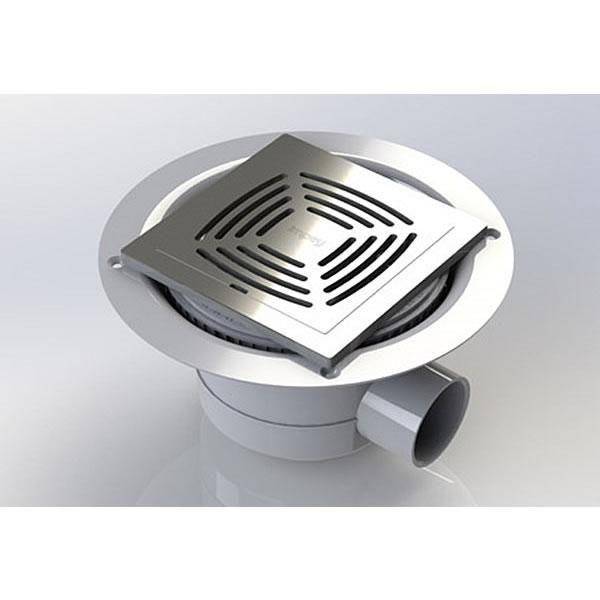

Impey Stainless Steel Tiled Floor Gully - HORIZONTAL - Suitable for TILED floor finish only.

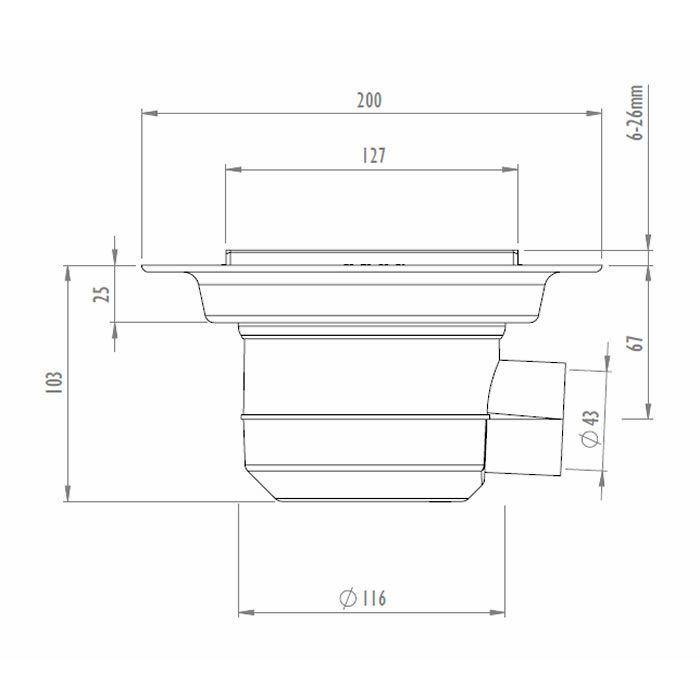

A high quality water trap featuring a 50mm water seal and fixed 43mm outlet. Complete with a 'slot' design height adjustable stainless steel grate, suitable for floor tiles 6mm-26mm deep.
All the Impey drainage, grate and gully products are designed by Impeys own R&D team and manufactured by Impey, specifically for the Impey Decs.
Stainless Steel Grate
Our drainage options are the most versatile on the market. The high quality stainless steel grate is 4mm thick and has a contemporary and modern design. A range of optional drain grate designs are available.

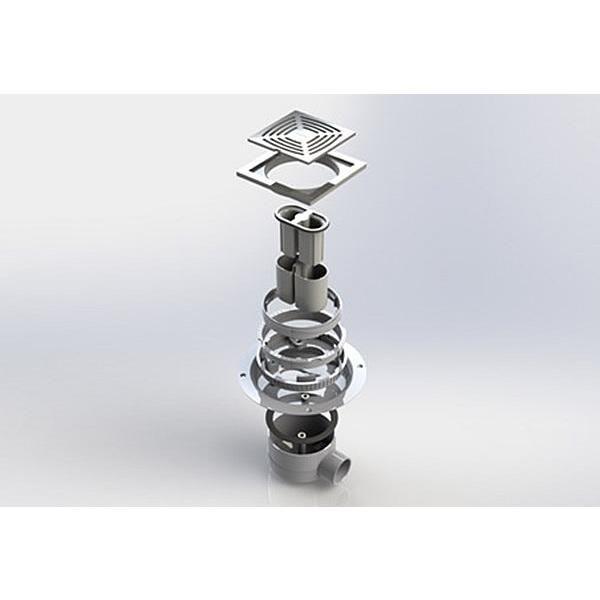

Height Adjustable Rings
The height adjustable rings rotate to vary the height to suit different tile depths. This unique feature means the gully can be used with varying tile depths between 6-26mm depending on waterproof membrane and adhesive thickness
Membrane Clamping Ring
The membrane clamping ring secures the Waterguard tanking membrane into place creating a secure watertight seal at the drainage point.
Grates Features:
Grates are Brittish made, unique designs to Impey
Laser cut high grade stainless steel grates
Easy to remove for cleaning the waste and grill
Flush fitting to floor surface
The max flow rate 32-35 LPM
Fits the current Impey universal drain for tiled floors
Minimum tile thickness 6mm
Long lasting finish
The stainless steel grill of the drain CANNOT be tiled.
