Impey Level Dec Easy Fit Wet Room Tray Floor Former - Vinyl Flooring 1200 x 900mm
SKU : LDE1290GRY
You May Also Need
Selection Subtotal:
£478.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 1200 x 900 x 22mm
- Rotating Drain for Avoidance of Joists
- Under Support NOT Required** - (≤ 400mm Centres)
- Complete with Drain for VINYL floors
- Can be trimmed - See Guide
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Vinyl Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Underfloor Heating
- Fitting Direct on Joists
- Micro Cement
- Tiled Floor Finish
To Here (this label will be hidden)

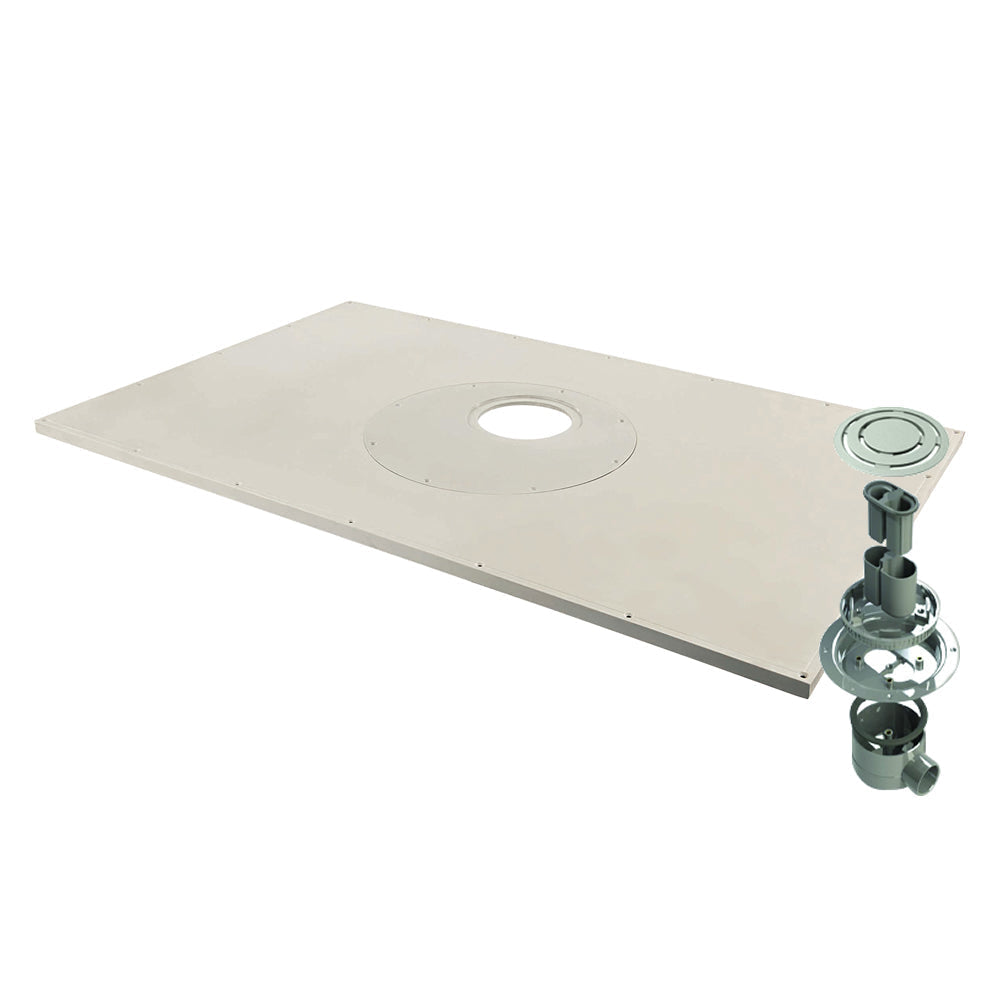

The Impey Level Dec EasyFit solves the potential installation problem of the drainage point being obstructed by joists within timber floors. A unique, patent protected drainage feature allows the installer to rotate the drain aperture to any position that will avoid the joist, or any other under floor obstruction. The Level Dec EasyFit requires no under-boarding** and will support over 300kg (47 stone) when fitted directly to standard floor joists.
The Impey Level Dec EasyFit has a computer designed cellular structure, which is compression moulded from high glass content SMC to provide the strongest most rigid construction on the market. Can be installed directly onto floor joists** with no additional support or bedded into screeded floors, and will support over 300kg (47 stone) when fixed directly to standard floor joists.
The Level Dec EasyFit is designed to provide the gradient required in the showering area for water drainage. What makes them so special is their extreme strength and rigidity, whilst only being 22mm thick at the outer rim. The low profile is specially engineered to be the same depth as standard floorboards. You simply remove the floorboards and fix the Level Dec to the floor joists **.

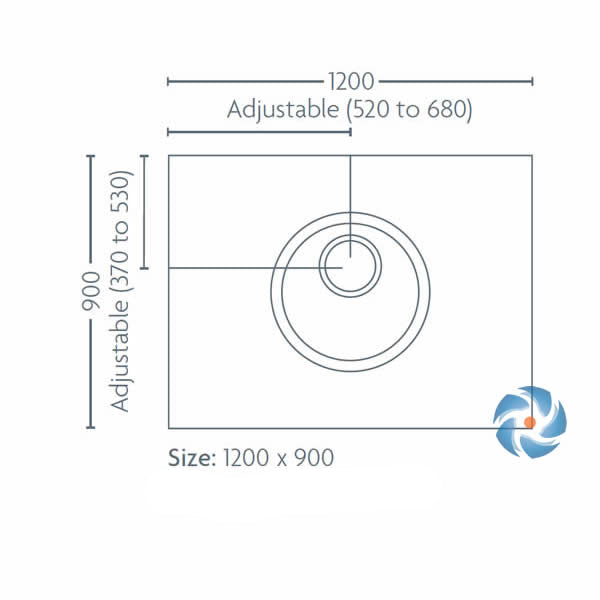

The revolutionary rotating drain point allows the drain position to be rotated through 360° to any position to avoid joists. If you need to trim or cut the Level Dec to avoid an obstruction it can be cut with a universal hand saw and drilled to provide additional screw fixing holes.
** At 400mm centres, joists that exceed this will require under-boarding.
Drain Outlets

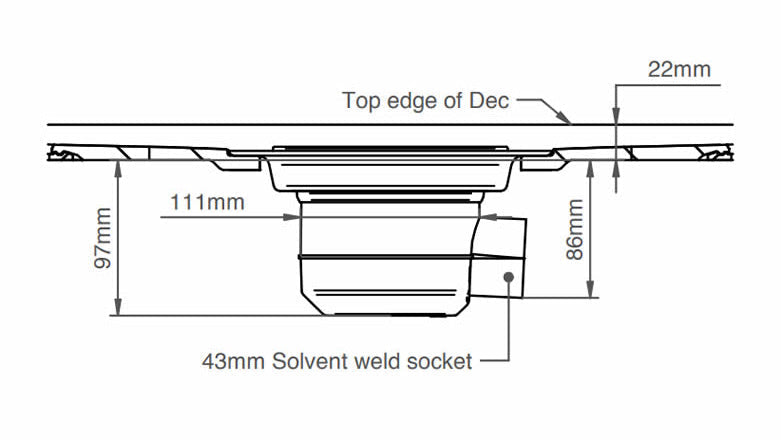

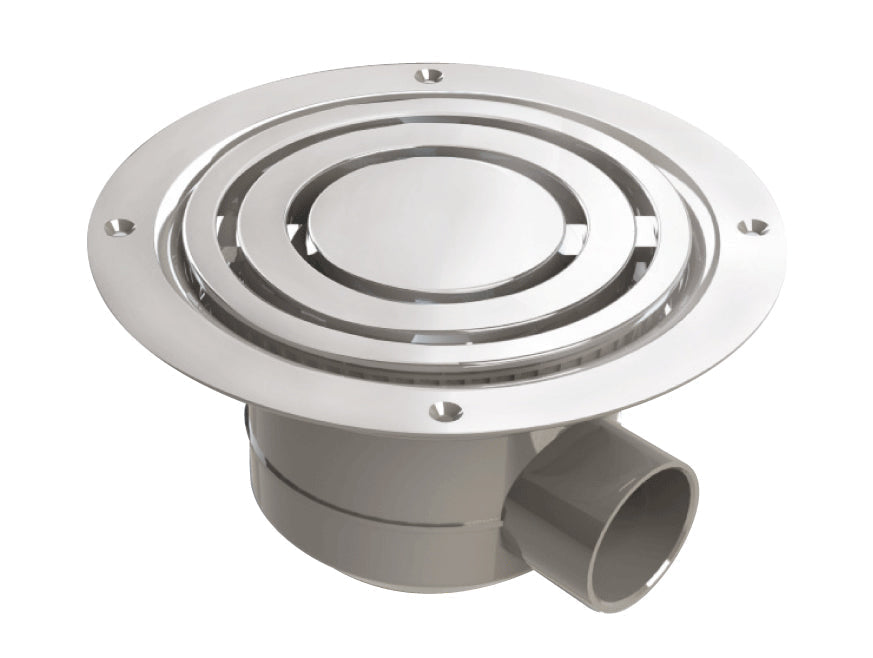

All Impey Level Dec Easy Fit floor formers are supplied as standard with the UTVG01/H (grey cover) vinyl floor gully with a horizontal outlet – a high quality water trap featuring a 50mm water seal, flexible 43mm outlet.

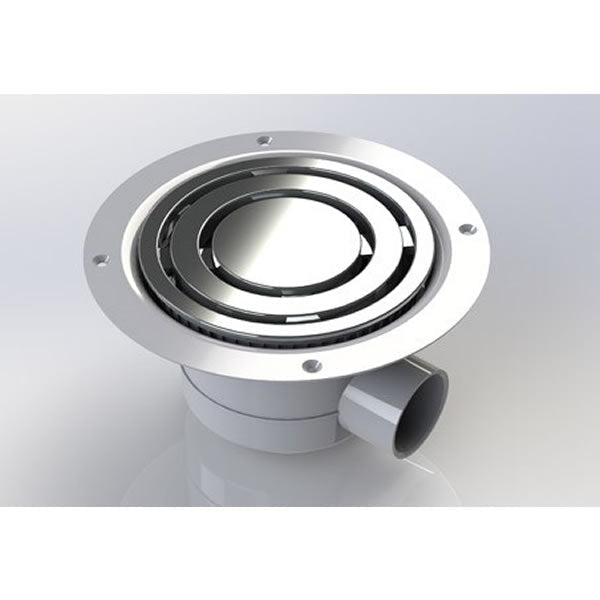

A Chrome grill & drain (UTVC01/H) is an optional extra and other drain outlets are available (vertical / low profile - please call 0800 280 8008).
*All Impey Level-Dec EasyFit bases carry a lifetime guarantee if installed according to the manufacturers instructions.
The Impey Level Dec Easy Fit can be cut to size, see the following for full details: Impey Level Dec Cutting & Drilling Guidelines (PDF).
Other drain outlets including, vertical, low profile and pumped waste outlets are also available. Please call 0800 280 8008 to request these drain outlets.
Tiled Floor
The Impey Level Dec is NOT suitable for use with a tiled floor finish. Please see Impey Aqua Dec for TILED floors, click here: Impey Aqua Dec - Tiled floor
Key Points
- 22mm thick
- Suitable for VINYL floors
- No under boarding required**
- Supports over 300kg (47 Stone)
- Lightweight yet strong
- Rotating drain through 360° to allow for the avoidance of joists
- Can be cut to size - See Guide.
- Drain & grey grill supplied as standard
- Optional Chrome drain grill available
- Lifetime Guarantee
- Drain Included - Tiled / Horizontal outlet.
- Designed & Manufactured in the UK
** At 400mm centres, joists that exceed this will require under-boarding.
Level Dec Benefits
Rotating drain
The Level Dec drain plate can rotate 360 degrees and avoid all underfloor wet room obstructions. The eccentric drain also features three locating rings, to provide superior hold between the Dec and the rotating drain plate.
Unbeatable strengthThe new Level Dec Fit wet room Dec is stronger than the original Aqua-Dec and requires NO UNDER BOARDING**
PortableThe Level Dec EasyFit is over 20% lighter than the original Aqua-Dec. The unique EasyFit material is also stronger but lighter.
Easily trimmableThe Level Dec EasyFit wet room Dec can be cut anywhere up to the solid surround with a standard handsaw.
EasyFit is 22mm thickThe new Level Dec EasyFit is consistently 22m thick around the perimeter.
Underside cellular structureThe underside spoke pattern provides increased rigidity to the structure of the Dec.
Wooden or concrete floor installationLevel Dec EasyFit can be fitted on wood and concrete floors as the spoke structure bonds well with wet concrete.
Download the Impey Level Dec EasyFit Installation Guide:
Other useful downloads:
