Impey Aqua Dec Linear 4 Wet Room Tray - 900 x 900 x 22mm
SKU : AD4L9090-LNR60S/H
You May Also Need
Selection Subtotal:
£639.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 900 x 900 x 22mm
- LINEAR Drain - 600mm length
- Brushed Stainless Steel Channel Cover
- Optional Channel Covers Available
- Under Support Required
- Height Adjustable Tiling Frame
- 4 Way Fall to Drain
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Tiled Floor Finish**
- Wet Rooms
- Level Access
- Modern Look
- Underfloor Heating
- Vinyl Floor Finish
- Micro Cement
- Use with Wheelchairs
- Fitting Direct on Joists
- Cutting to Size
To Here (this label will be hidden)

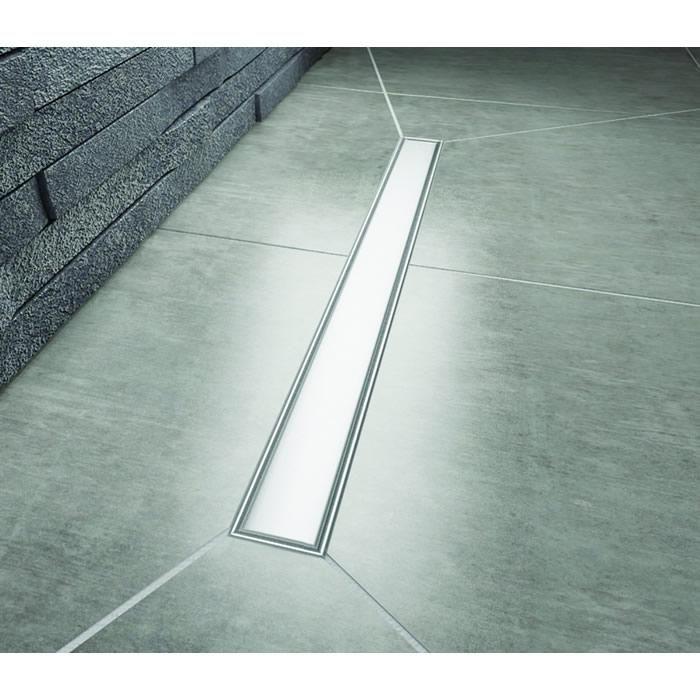

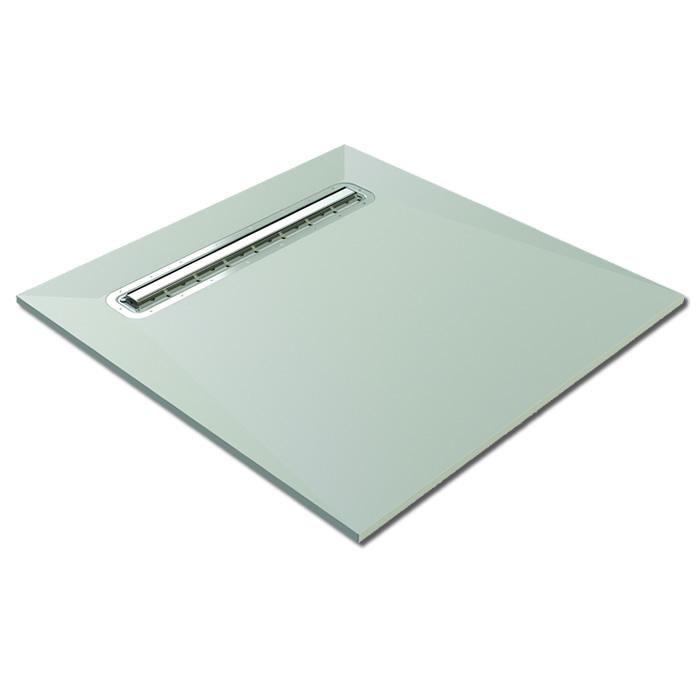

The Aqua-Dec Linear 4 Wetroom Floor Former is a strong 22mm thick wet room tray with 4 pre-formed drainage gradients that provide a level access wetroom floor suitable for a tiled covering.
Featuring four gradients to assist flow to the linear drain and has a stylish 40mm wide stainless steel linear drain to create a more defined finish and allow for a higher water flow rate - ideal for use with the most powerful showers with body jets.
The linear 4 comes complete with a 600mm linear drain capable of flows of 42 litres per minute (depending on room layout and size of the Aqua Dec). The linear drain is shipped with a brushed stainless steel drain cover as standard. Other optional inserts are also available.

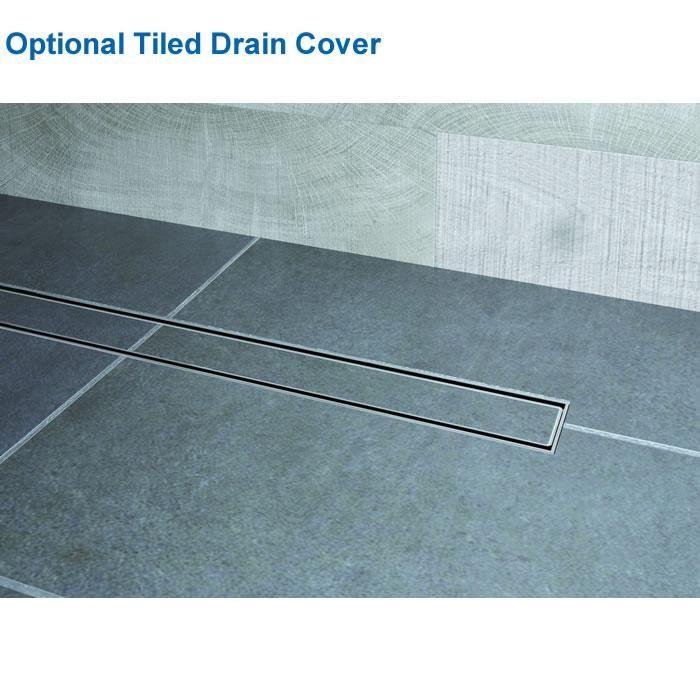

Optional Tiled Insert
The Linear Tiled Insert Top is an alternative option from the brushed stainless top supplied as standard with any of the Aqua-Dec Linear and Aqua-Grade Linear floor formers. The Tile insert option is available in 13mm or 24mm fixed height from the floor former to the top of the tiling frame.
Impey Designer Drain Covers & Inserts
In addition to the standard brushed stainless steel channel cover, and tileable inserts, Impey also offer a range of designer drain channel covers and inserts
All designer drain tops are manufactured in the UK and laser cut from the highest quality stainless steel specially for Impey wetroom floor formers. The range of designs and finishes add a touch of individual style to the wetroom.
A combination of contemporary and modern patterns provides choice and the option to add a lustrous, high-end designer style to any bathroom. Designed with choice in mind, the Aqua-Dec Linear floor former range helps to achieve the desired look of each unique wetroom.
Black Metallic & Polished Stainless Steel inserts are 13mm fixed height from the floor former to the top of the tiling frame.
Important:
NOT suitable for VINYL floor finish
It is NOT possible to trim the Aqua Dec Linear 4 to size.
Under boarding of the Aqua Dec Linear is required.
The Linear flow drain requires a minimum 95mm clearance below the Aqua Dec.
A tanking membrane such as Impey WaterGuard will need to be laid prior to tiling.
*All Impey Aqua-Dec EasyFit bases carry a lifetime guarantee if installed according to the manufacturers instructions.
**If finishing the floor with TILES a tanking membrane such as Impey WaterGuard should be laid first.
Key Features:
- 900 x 900 x 22mm
- 600mm Drain Channel Length
- 4 way falls to drain
- Lightweight & Strong
- Under-boarding required to provide support
- Complete with brushed stainless steel drain cover
- Lifetime guarantee if fitted in accordance with manufacturer’s instructions.
Benefits
- 4 way fall consistent gradient - Easy to install - no special skills required
- 22mm thick - Same depth as most commonly used flooring
- High flow rates of up to 42 litres per minute - Easily copes with modern power showers
- Strong - Made from multi-layer GRP with solid core
- Supplied with horizontal linear flow drain - Assists with alignment to existing pipework
- Height adjustable tiling frame - Caters for different tile thicknesses
- Full install guide, fixings and screws supplied - Install straight out of the box
- Lifetime Guarantee -As standard across all Impey wetroom trays and waterproofing
Downloads:

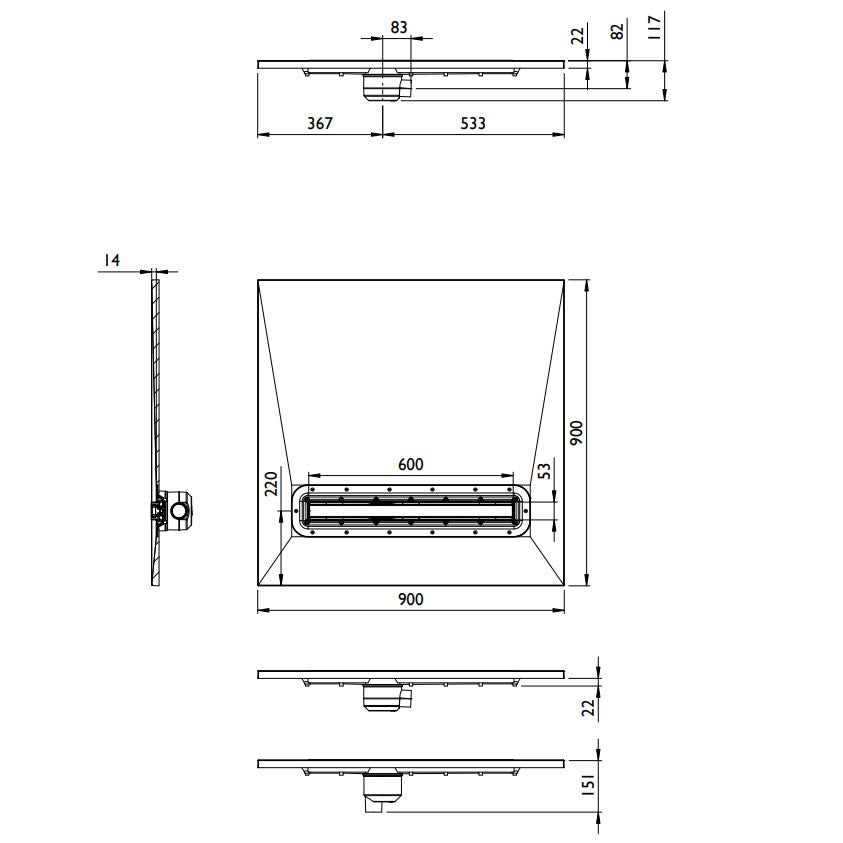

Impey Aqua Dec Linear 4 - Specification SheetImpey Aqua Dec Linear 4 - 900 x 900mm Plan
Impey Aqua Dec Linear 4 - Fitting Instructions
Impey Waterguard Installation - Floors
Impey WaterGuard Installation - Walls
Impey WaterGuard Data Sheet
Impey WaterGuard Wet Room Tanking Membrane
Impey WaterGuard membrane is the next generation of wetroom waterproofing systems. It provides a faster and easier method of tanking a leak-free wetroom area. WaterGuard® features a new fleece membrane with a self adhesive butyl rubber backing, which is fast and easy to install.
WaterGuard provides the complete leak-proof sealing solution, at just 1mm thick WaterGuard is strong, flexible and versatile making tanking a wet room faster and easier. It comes with a lifetime guarantee*, so you can install with complete confidence.
Unlike many other systems Impey WaterGuard® can be tiled as soon as it has been fitted saving both installation time and cost.
Full product details: Impey WaterGuard Wet Room Tanking Membrane
Sommer Evolve Wet Room Shower Screen
Add an optional quality Sommer Evolve 8mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket and support arm (700mm screen & above).
Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#
A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Sommer wet room shower screens offer many premium features:
- Bclean coating: Easy clean glass finish
- Life time guarantee
- Toughened 8mm thick glass
- 2000mm high
- Wall fixing profile supplied
- Adjustable bracing bar supplied (1m)
- Fittings available in Chrome or Black
- Adjustment for secure and easy fixing (see below for further details)
- Optional floor to ceiling post available (Max height 2.6m) - Cannot be used in conjunction with optional 300mm return panel.
- Optional Angled Stabilising bar available (300mm)
- CE Approved - Toughened 8mm thick glass
- European safety glass approved - EN12150-1
#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.
Sommer wet room shower screens are highly versatile and can be installed in many configurations including, One panel in a corner, One panel in an alcove, Walk through (with the use of two optional floor to ceiling posts), and with two panels in a corner to create a walk in enclosure.
Full product details: Sommer Evolve Wet Room Shower Screen
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 900 x 900 x 22mm
- LINEAR Drain - 600mm length
- Brushed Stainless Steel Channel Cover
- Optional Channel Covers Available
- Under Support Required
- Height Adjustable Tiling Frame
- 4 Way Fall to Drain
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Tiled Floor Finish**
- Wet Rooms
- Level Access
- Modern Look
- Underfloor Heating
- Vinyl Floor Finish
- Micro Cement
- Use with Wheelchairs
- Fitting Direct on Joists
- Cutting to Size
To Here (this label will be hidden)
The Aqua-Dec Linear 4 Wetroom Floor Former is a strong 22mm thick wet room tray with 4 pre-formed drainage gradients that provide a level access wetroom floor suitable for a tiled covering.
Featuring four gradients to assist flow to the linear drain and has a stylish 40mm wide stainless steel linear drain to create a more defined finish and allow for a higher water flow rate - ideal for use with the most powerful showers with body jets.
The linear 4 comes complete with a 600mm linear drain capable of flows of 42 litres per minute (depending on room layout and size of the Aqua Dec). The linear drain is shipped with a brushed stainless steel drain cover as standard. Other optional inserts are also available.
Optional Tiled Insert
The Linear Tiled Insert Top is an alternative option from the brushed stainless top supplied as standard with any of the Aqua-Dec Linear and Aqua-Grade Linear floor formers. The Tile insert option is available in 13mm or 24mm fixed height from the floor former to the top of the tiling frame.
Impey Designer Drain Covers & Inserts
In addition to the standard brushed stainless steel channel cover, and tileable inserts, Impey also offer a range of designer drain channel covers and inserts
All designer drain tops are manufactured in the UK and laser cut from the highest quality stainless steel specially for Impey wetroom floor formers. The range of designs and finishes add a touch of individual style to the wetroom.
A combination of contemporary and modern patterns provides choice and the option to add a lustrous, high-end designer style to any bathroom. Designed with choice in mind, the Aqua-Dec Linear floor former range helps to achieve the desired look of each unique wetroom.
Black Metallic & Polished Stainless Steel inserts are 13mm fixed height from the floor former to the top of the tiling frame.
Important:
NOT suitable for VINYL floor finish
It is NOT possible to trim the Aqua Dec Linear 4 to size.
Under boarding of the Aqua Dec Linear is required.
The Linear flow drain requires a minimum 95mm clearance below the Aqua Dec.
A tanking membrane such as Impey WaterGuard will need to be laid prior to tiling.
*All Impey Aqua-Dec EasyFit bases carry a lifetime guarantee if installed according to the manufacturers instructions.
**If finishing the floor with TILES a tanking membrane such as Impey WaterGuard should be laid first.
Key Features:
- 900 x 900 x 22mm
- 600mm Drain Channel Length
- 4 way falls to drain
- Lightweight & Strong
- Under-boarding required to provide support
- Complete with brushed stainless steel drain cover
- Lifetime guarantee if fitted in accordance with manufacturer’s instructions.
Benefits
- 4 way fall consistent gradient - Easy to install - no special skills required
- 22mm thick - Same depth as most commonly used flooring
- High flow rates of up to 42 litres per minute - Easily copes with modern power showers
- Strong - Made from multi-layer GRP with solid core
- Supplied with horizontal linear flow drain - Assists with alignment to existing pipework
- Height adjustable tiling frame - Caters for different tile thicknesses
- Full install guide, fixings and screws supplied - Install straight out of the box
- Lifetime Guarantee -As standard across all Impey wetroom trays and waterproofing
Downloads:
Impey Aqua Dec Linear 4 - Specification SheetImpey Aqua Dec Linear 4 - 900 x 900mm Plan
Impey Aqua Dec Linear 4 - Fitting Instructions
Impey Waterguard Installation - Floors
Impey WaterGuard Installation - Walls
Impey WaterGuard Data Sheet
Impey WaterGuard Wet Room Tanking Membrane
Impey WaterGuard membrane is the next generation of wetroom waterproofing systems. It provides a faster and easier method of tanking a leak-free wetroom area. WaterGuard® features a new fleece membrane with a self adhesive butyl rubber backing, which is fast and easy to install.
WaterGuard provides the complete leak-proof sealing solution, at just 1mm thick WaterGuard is strong, flexible and versatile making tanking a wet room faster and easier. It comes with a lifetime guarantee*, so you can install with complete confidence.
Unlike many other systems Impey WaterGuard® can be tiled as soon as it has been fitted saving both installation time and cost.
Full product details: Impey WaterGuard Wet Room Tanking Membrane
Sommer Evolve Wet Room Shower Screen
Add an optional quality Sommer Evolve 8mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket and support arm (700mm screen & above).
Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#
A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Sommer wet room shower screens offer many premium features:
- Bclean coating: Easy clean glass finish
- Life time guarantee
- Toughened 8mm thick glass
- 2000mm high
- Wall fixing profile supplied
- Adjustable bracing bar supplied (1m)
- Fittings available in Chrome or Black
- Adjustment for secure and easy fixing (see below for further details)
- Optional floor to ceiling post available (Max height 2.6m) - Cannot be used in conjunction with optional 300mm return panel.
- Optional Angled Stabilising bar available (300mm)
- CE Approved - Toughened 8mm thick glass
- European safety glass approved - EN12150-1
#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.
Sommer wet room shower screens are highly versatile and can be installed in many configurations including, One panel in a corner, One panel in an alcove, Walk through (with the use of two optional floor to ceiling posts), and with two panels in a corner to create a walk in enclosure.
Full product details: Sommer Evolve Wet Room Shower Screen
Impey Wetrooms
Impey are a leading name in wet rooms, pioneering many of the innovations which make the luxury and style of a wet room accessible to all. With Impey there is a comprehensive choice of solutions to suit everyone and every living space - from designer style apartments and hotel suites to family bathrooms, period residences, smaller flats and en-suites. Every Impey wet room comes with impressive specialist technology built in, to ensure a great performance, easy installation and the complete leakfree solution. Impey products are designed and manufactured in the UK, and come with excellent guarantees for a lifetime of luxurious showering.
