Impey Aqua Dec Linear 4 Wet Room Tray - 1200 x 1200 x 22mm
SKU : AD4L1212-LNR80S/H
You May Also Need
Selection Subtotal:
£714.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 1200 x 1200 x 22mm
- LINEAR Drain - 800mm length
- Brushed Stainless Steel Channel Cover
- Optional Channel Covers Available
- Under Support Required
- Height Adjustable Tiling Frame
- 4 Way Fall to Drain
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Tiled Floor Finish**
- Wet Rooms
- Level Access
- Modern Look
- Underfloor Heating
- Vinyl Floor Finish
- Micro Cement
- Use with Wheelchairs
- Fitting Direct on Joists
- Cutting to Size
To Here (this label will be hidden)

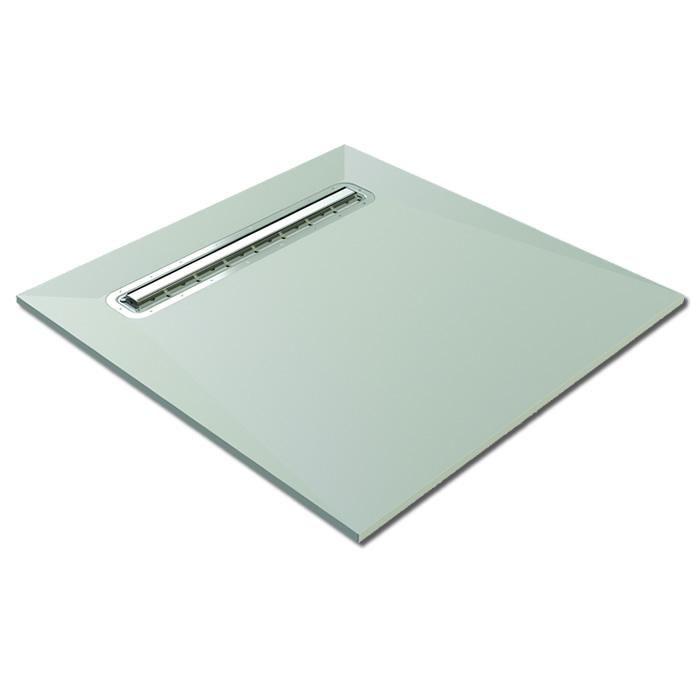

The Aqua-Dec Linear 4 Wetroom Floor Former is a strong 22mm thick wet room tray with 4 pre-formed drainage gradients that provide a level access wetroom floor suitable for a tiled covering.

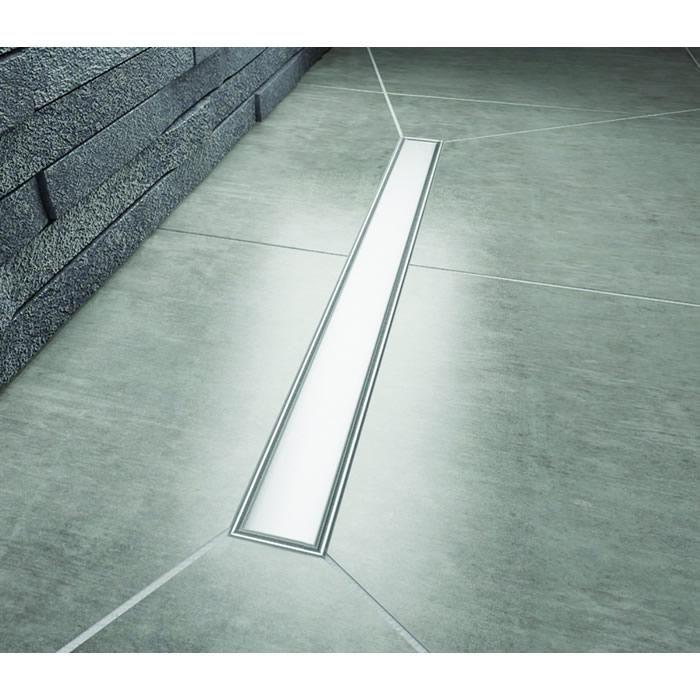

Featuring four gradients to assist flow to the linear drain and has a stylish 40mm wide stainless steel linear drain to create a more defined finish and allow for a higher water flow rate - ideal for use with the most powerful showers with body jets.
The linear 4 comes complete with a 800mm linear drain capable of flows of 42 litres per minute (depending on room layout and size of the Aqua Dec). The linear drain is shipped with a brushed stainless steel drain cover as standard. Other optional inserts are also available.

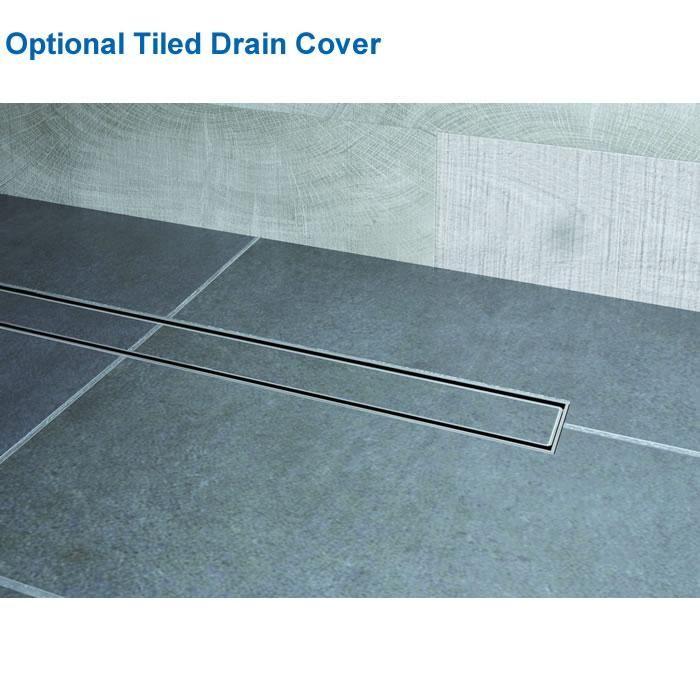

Optional Tiled Insert
The Linear Tiled Insert Top is an alternative option from the brushed stainless top supplied as standard with any of the Aqua-Dec Linear and Aqua-Grade Linear floor formers. The Tile insert option is available in a 13mm fixed height from the floor former to the top of the tiling frame.
Impey Designer Drain Covers & Inserts
In addition to the standard brushed stainless steel channel cover, and tileable inserts, Impey also offer a range of designer drain channel covers and inserts
All designer drain tops are manufactured in the UK and laser cut from the highest quality stainless steel specially for Impey wetroom floor formers. The range of designs and finishes add a touch of individual style to the wetroom.
A combination of contemporary and modern patterns provides choice and the option to add a lustrous, high-end designer style to any bathroom. Designed with choice in mind, the Aqua-Dec Linear floor former range helps to achieve the desired look of each unique wetroom.
Black Metallic & Polished Stainless Steel inserts are 13mm fixed height from the floor former to the top of the tiling frame.
Important:
NOT suitable for VINYL floor finish
It is NOT possible to trim the Aqua Dec Linear 4 to size.
Under boarding of the Aqua Dec Linear is required.
The Linear flow drain requires a minimum 95mm clearance below the Aqua Dec.
A tanking membrane such as Impey WaterGuard will need to be laid prior to tiling.
*All Impey Aqua-Dec EasyFit bases carry a lifetime guarantee if installed according to the manufacturers instructions.
**If finishing the floor with TILES a tanking membrane such as Impey WaterGuard should be laid first.
Key Features:
- 1200 x 1200 x 22mm
- 800mm Drain Channel Length
- 4 way falls to drain
- Lightweight & Strong
- Under-boarding required to provide support
- Complete with brushed stainless steel drain cover
- Lifetime guarantee if fitted in accordance with manufacturer’s instructions.
Benefits
- 4 way fall consistent gradient - Easy to install - no special skills required
- 22mm thick - Same depth as most commonly used flooring
- High flow rates of up to 42 litres per minute - Easily copes with modern power showers
- Strong - Made from multi-layer GRP with solid core
- Supplied with horizontal linear flow drain - Assists with alignment to existing pipework
- Height adjustable tiling frame - Caters for different tile thicknesses
- Full install guide, fixings and screws supplied - Install straight out of the box
- Lifetime Guarantee -As standard across all Impey wetroom trays and waterproofing
Downloads:

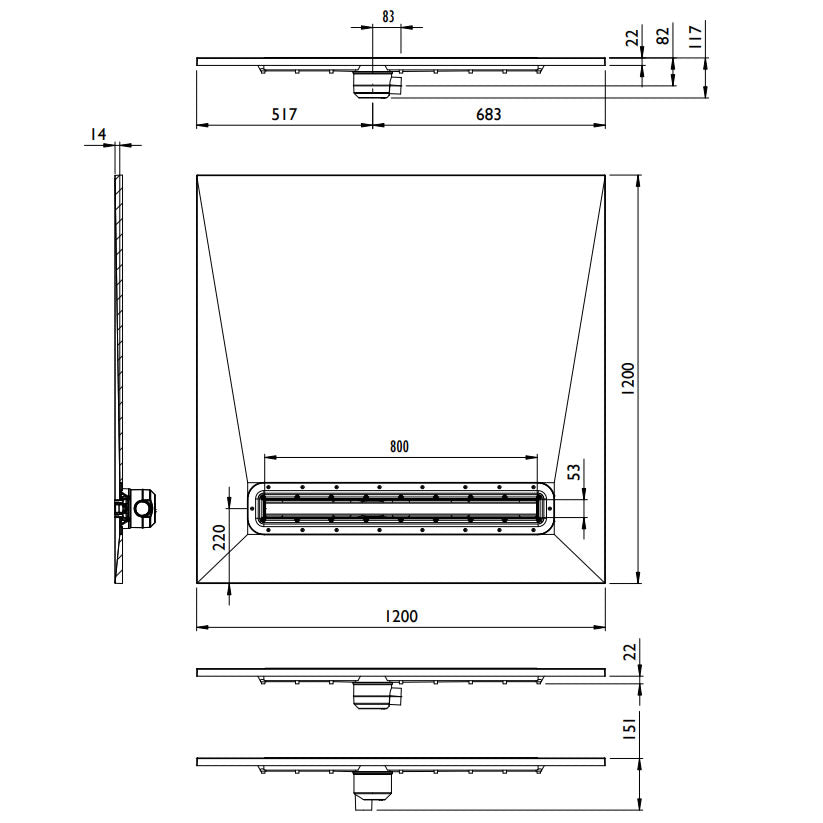

Impey Aqua Dec Linear 4 - Specification SheetImpey Aqua Dec Linear 4 - 1200 x 1200mm Plan
Impey Aqua Dec Linear 4 - Fitting Instructions
Impey Waterguard Installation - Floors
Impey WaterGuard Installation - Walls
Impey WaterGuard Data Sheet
