AKW Tuff Form8 Wet Room Walk In Shower Tray 1500 x 1200 x 22mm
SKU : 21137-25106
You May Also Need
Selection Subtotal:
£540.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 1500 x 1200 x 22mm
- UNDER-SUPPORT NOT REQUIRED
- CHOOSE DRAIN (TILED, VINYL & PUMPED OPTIONS)
- ROTATE DRAIN PLATE TO CHANGE DRAIN POSITION
- SUPPORTS UP TO 381KG
- CAN BE TRIMMED TO 150MM OF DRAIN PLATE
- RIBBED UNDERSIDE
- LIFETIME GUARANTEE*
- WOOD OR CONCRETE SUBFLOOR
- TILED FLOOR FINISH
- VINYL FLOOR FINISH
- WET ROOMS
- LEVEL ACCESS
- RAISED ON PLATFORM
- USE WITH WHEELCHAIRS
- FITTING DIRECT ON JOISTS
- UNDERFLOOR HEATING
- MICRO CEMENT
To Here (this label will be hidden)

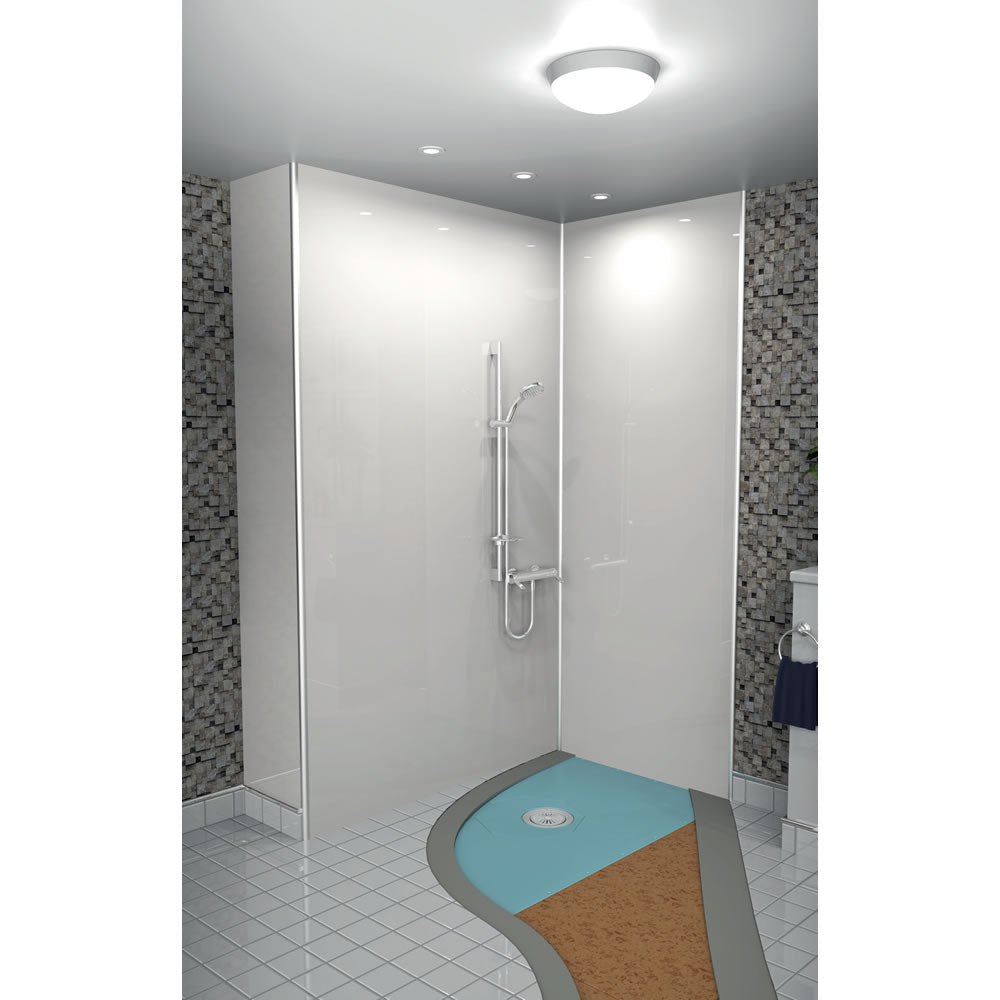

Tuff Form8 is a level-access wet room former from AKW, it combines all of the original Tuff Form’s benefits with a brand new fitting innovation to create AKW's best, most uncompromising wetroom former to date. Designed for incredibly easy installation, Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also provides the increasingly popular option of placing the waste in the centre of the tray.

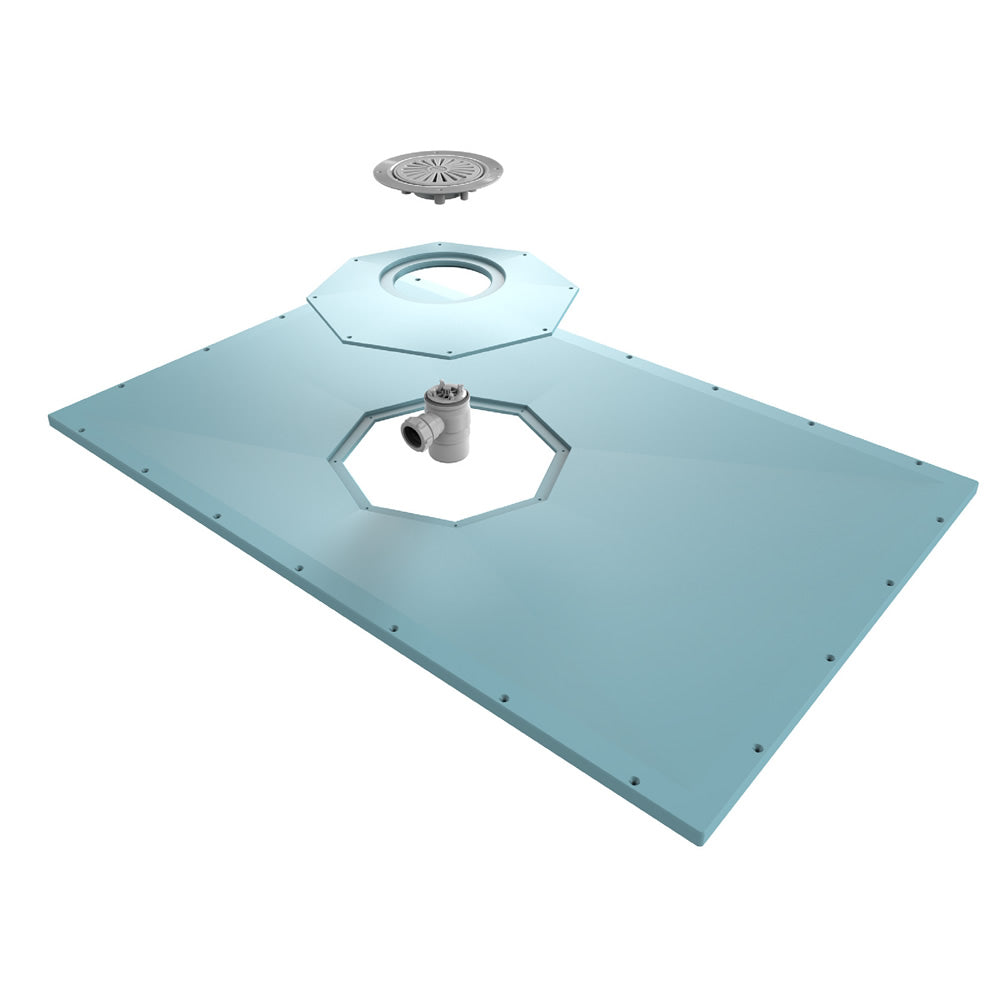

Designed for incredibly easy installation, the AKW Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also
provides the increasingly popular option of placing the waste in the centre of the tray. The design of the octagonal plate maintains the fall to maximise drainage and eliminate pooling water.
Made from high strength Sheet Moulding Compound (SMC), the quality build and versatility of Tuff Form8 wet room former gives the option of tiling or installing vinyl safety flooring.
Installation is quick and easy as Tuff Form8 has pre-formed fixing points, therefore no measuring is required. An improved weight limit of 381kg / 60 Stone and a lifetime guarantee, the AKW Tuff Form8 has all you need to make the perfect wet room / walk in shower.
Specification:

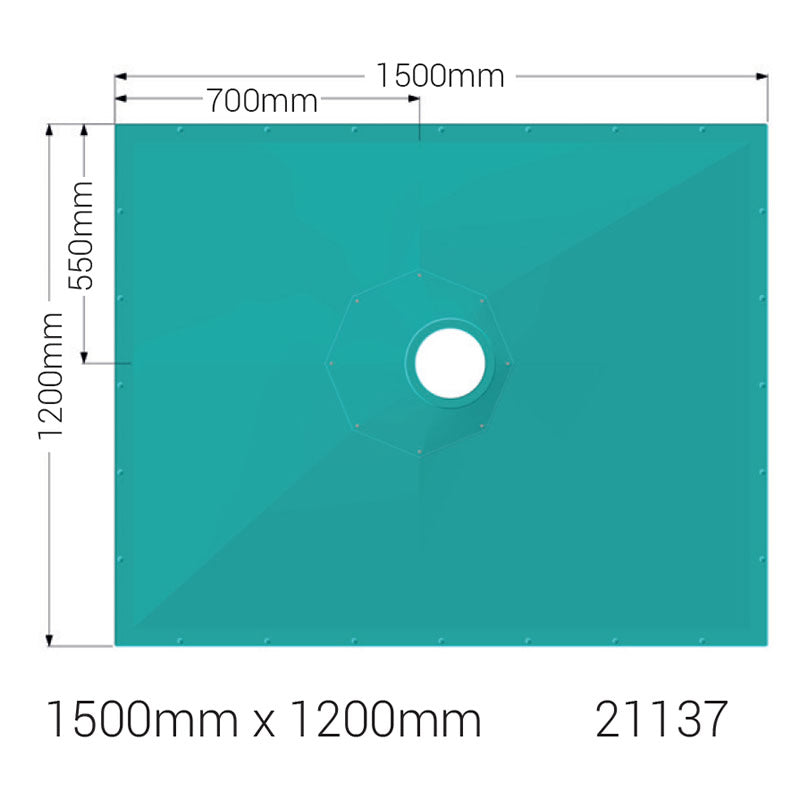

Size 1500 x 1200 x 22mm
Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
Strength: 60 stone (381kg) on joists/ Unlimited on concrete
Manufacturing technique: Compression moulding
Recyclability: Recyclable
Features:
Rotatable waste position
Wide selection of waste options
Suitable for both wooden and concrete floor
Easily trimmable within 150mm from the octagonal plate
No need for under boarding
Pre-formed fixing holes
User friendly step-by-step installation guide
Suitable for use with underfloor heating
Ribbed underside structure
Durably supported for up to 60 stones on timber joists
Level-access with large size options
High strength GRP
Well-engineered 1:16 gradient
Benefits:
Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
Ability to remove octagonal plate makes for quick and easy installation of pipework
Waste installation requires no tedious screw hole drilling
Quick and easy installation
Ribbed underside eliminates slippage or float during installation
Versatile applications
Peace of mind for long term use
Designed with a variety of end-users in mind, able to support chair users and carers
A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation.

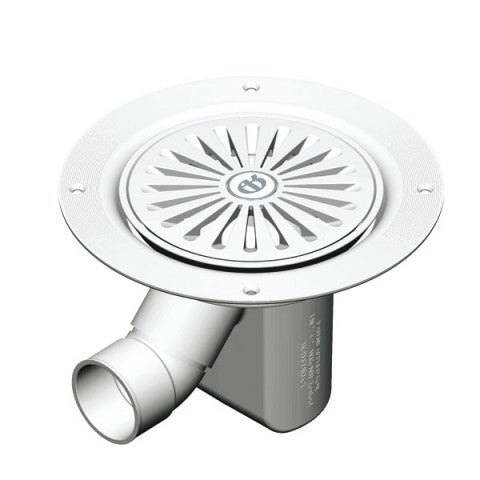

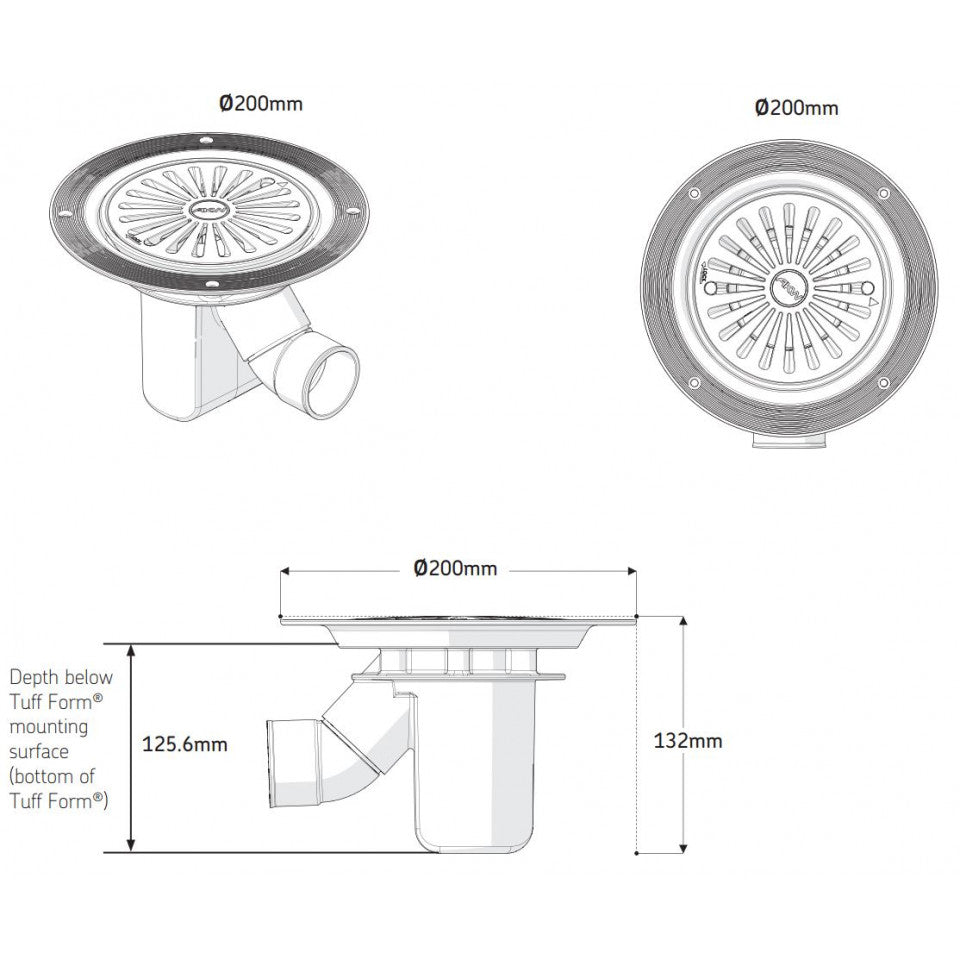

TF75 Gravity Waste for VINYL:
- Opens for easy cleaning and rodding
- 125mm deep below mounting surface
- 75mm water trap depth (seal)
- Adjustable elbow for waste pipe exit
- Patented design: GB2402946
- Guaranteed for life*
- H132 x W200

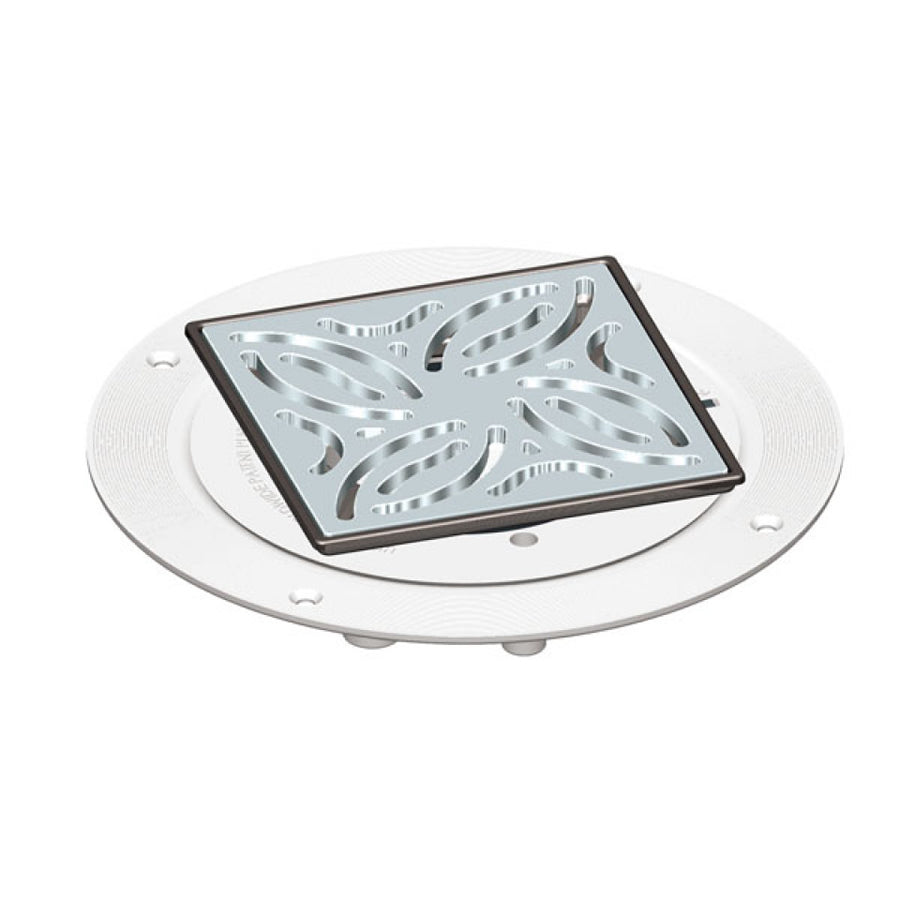

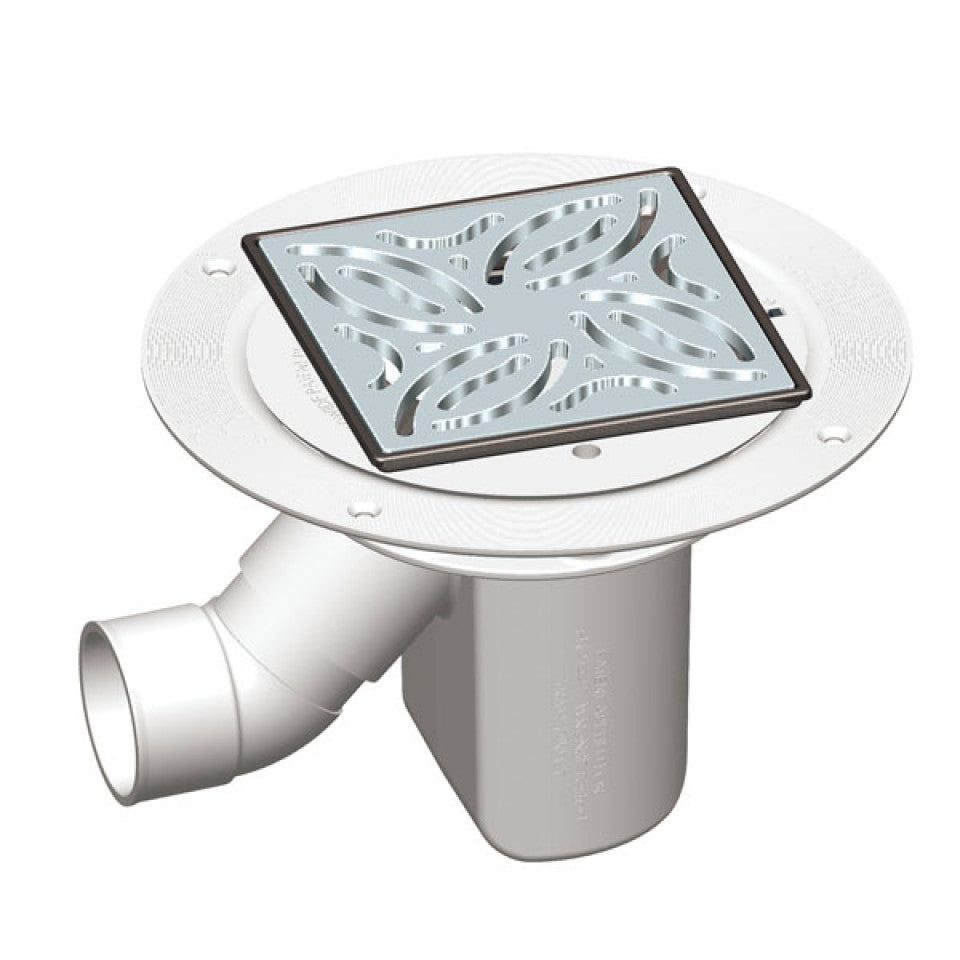

- For use with Tuff Form former when tiling
- Opens for easy cleaning and rodding
- 125mm deep below mounting surface
- Overall depth 132mm
- 75mm water trap depth
- Adjustable elbow for waste pipe exit
- Stainless steel plate dimensions - 120 x 120mm
- Stainless steel plate height is adjustable to max of 18mm with adhesive
- Guaranteed for Life*

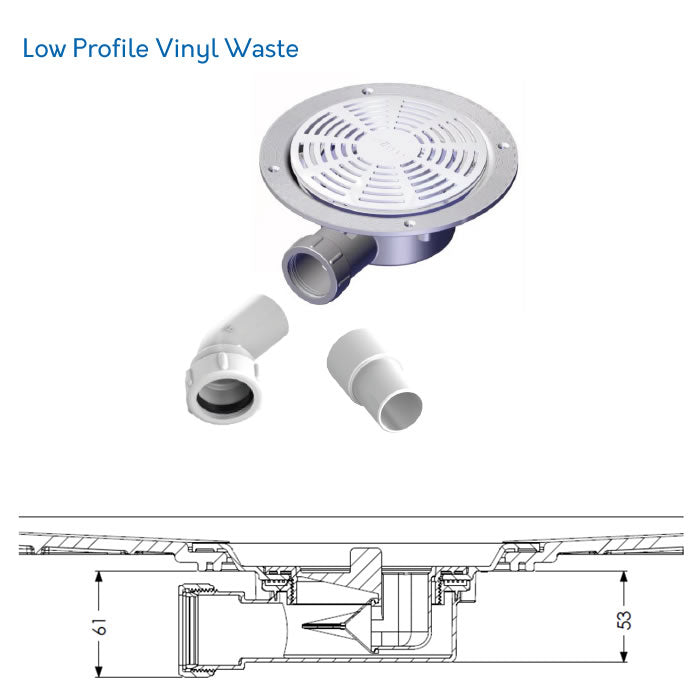

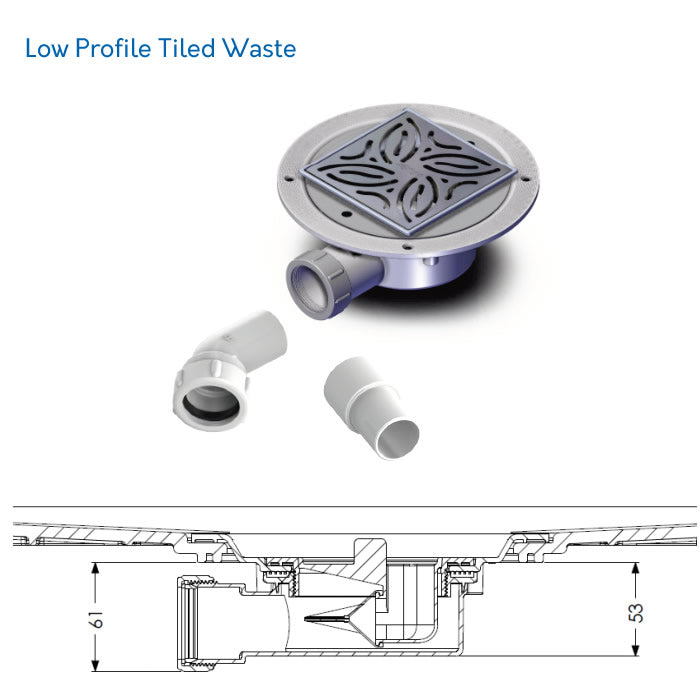

- Shallow 53mm depth. Useful for solid floors or shallow joists.
- Trap will not dry out with sporadic use
- Very compact
- Good seals and location
- Non return valve preventing bad odour backflow
- Suitable for push fit pipe (with included adaptor)
- Suitable for solvent weld pipe (with included adaptor)
- Top access for easy cleaning
- High flow rate (27 l/min with 15mm head and 1m of pipe)
- Meets the performance requirements of British standards
- Replaces 15mm & 22mm PGTF
- If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
- Quiet performance at all flow rates
- Integrated 22mm JG fitting
- Bayonet or screw fit cover
- Improved aesthetics over existing PGTF
- Dual chambers balance flow and reduce gulping effect
- Baffles reduce noise escaping chambers
- Flow guides encourage linear flow
- Bayonet cover fits existing TF75

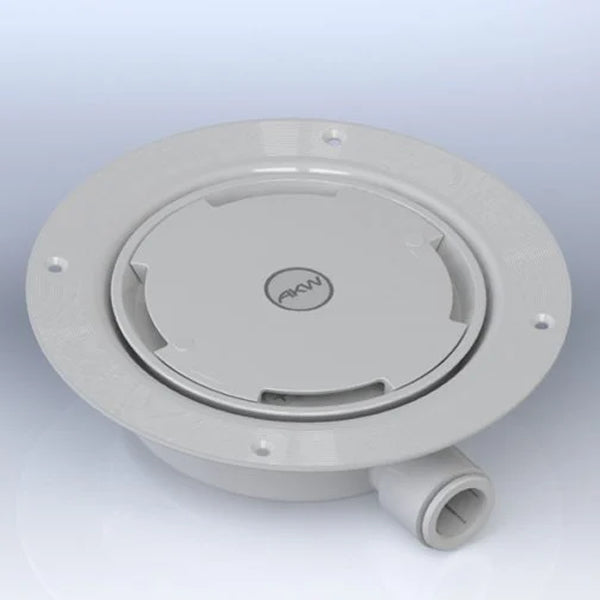

- Compatible with all AKW shower waste pumps
- Depth below tray 48mm/overall depth 55mm
- Pump NOT Included
- Guaranteed for Life*
- Replaces 15mm & 22mm PGTF
- If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
- Quiet performance at all flow rates
- Integrated 22mm JG fitting
- Bayonet or screw fit cover
- Improved aesthetics over existing PGTF
- Dual chambers balance flow and reduce gulping effect
- Baffles reduce noise escaping chambers
- Flow guides encourage linear flow
- Bayonet cover fits existing TF75
- Compatible with all AKW shower waste pumps
- Depth below tray 48mm/overall depth 55mm
- Guaranteed for Life*
- For use with Tuff Form former when tiling
- 22mm outlet pipe versions only
- Opens for easy cleaning and rodding
- Pump NOT Included
- 22mm depth below tray = 44mm
- 22mm JG Speedfit outlet
- Stainless steel plate dimensions = 120 x 120mm
- Stainless steel plate height is adjustable to max of 18mm
- Guaranteed for Life*
MERLYN 8MM Wetroom Panel
Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.
Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.
Features:
- Height: 2015mm (Including rail)
- All panels from 700mm & above come with a 1000mm stabilising bar
- Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
- * All shower screens are nominally sized, see screen adjustment tab for measurements
- 8mm toughened glass
- Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
- Strong & sturdy constructions
- 3m support post can be retro-fitted to glass thickness of 8mm
- Suitable for recess or corner situation
- Optional Swivel panel can be retrofitted to any 8mm wetroom panel
- Easy clean Mershield Stayclear protected glass
- Reversible
- Corner profile option available
- Wetroom compatible
- 20-year Guarantee
