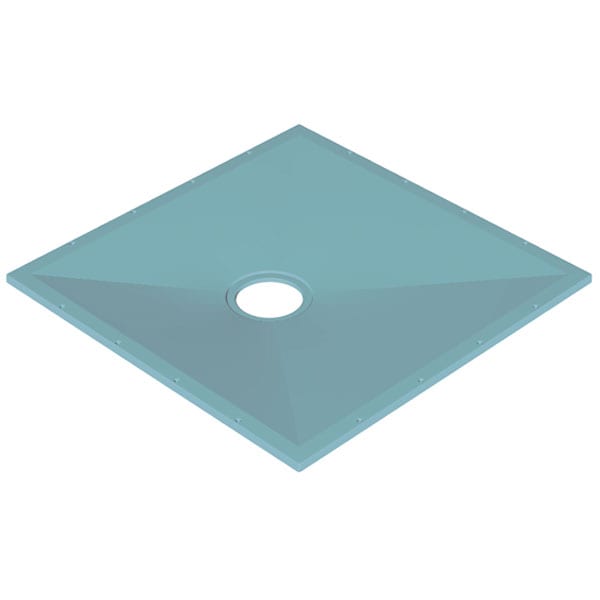

AKW Tuff Form Wet Room Walk In Shower Tray 1000 x 1000 x 22mm
£320.00
SKU : 21008/25106
You May Also Need
Selection Subtotal:
£320.00
Description
Drain Options
Product Downloads
YOU MAY ALSO NEED - OPTIONAL EXTRAS
Installation Video
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Specification
Suitable For
Not Suitable For
Add your 3 lists here (this label will be hidden)

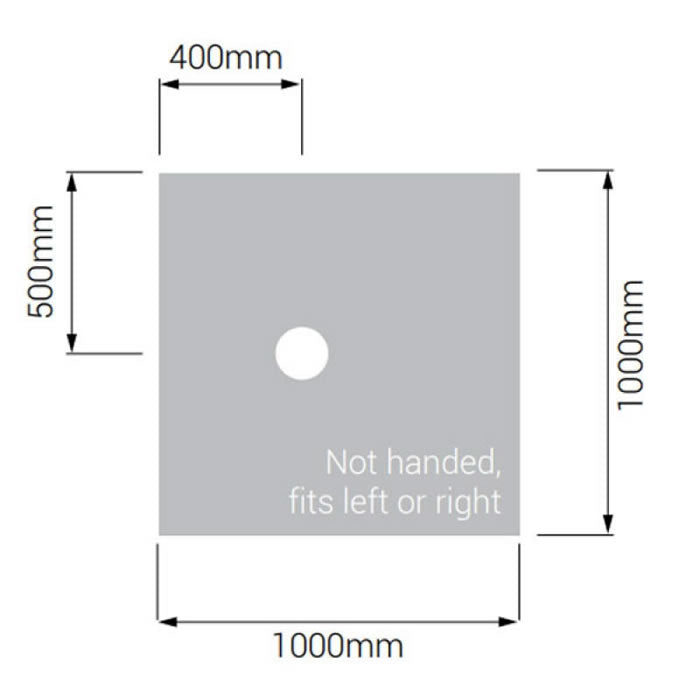

- 1000 x 1000 x 20mm
- OFFSET Drain Position
- Under Support NOT Required
- Tiled or Vinyl Drains Available inc Low Profile
- Can be Trimmed to Within 150mm of the Waste
- Supports up to 254Kg
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Tiled Floor Finish
- Vinyl Floor Finish
- Wet Rooms & Level Access
- Fitting Direct on Joists
- Use with Wheelchairs
- Raised on Platform
- Underfloor Heating
- Micro Cement
To Here (this label will be hidden)

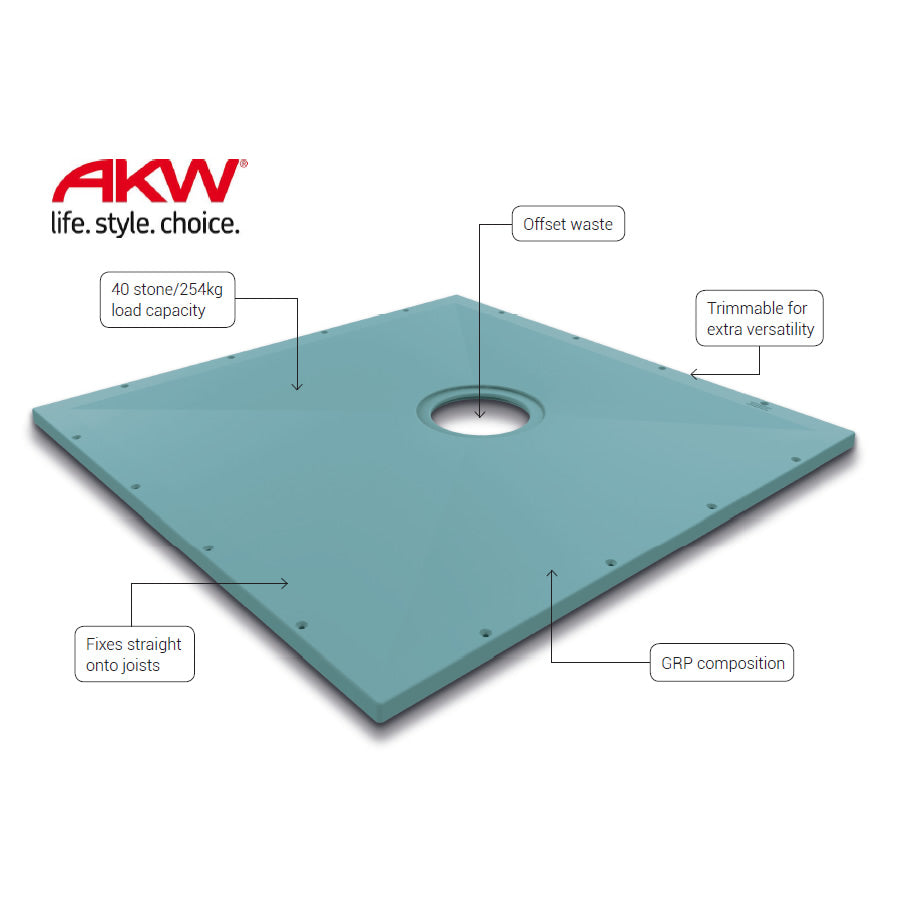

The AKW Tuff Form wet room / walk in shower tray is a lightweight yet strong floor former that is suitable for use with wheelchair showering and can accept VINYL or TILED flooring making it the ideal choice for both disabled showers and family wet rooms, or where combined usage is required.
Tens of thousands of installations worldwide, so it’s popular – and proven!
Key Features:
- Creates a full level access showering solution
- Exceptionally strong to accommodate a user with wheelchair and a carer
- Superior strength and rigidity providing excellent water integrity with comfort and safety underfoot
- Maximum weight capacity 40 stone / 254kg
- Suitable for both wooden and solid floors
- Formed from compressed GRP
- Can be cut to length or trimmed to within 150mm of the waste without losing any strength integrity
- The ribbed design of the underside eliminates slippage or float during installation
- Offset waste position to avoid joists pipework
- Tuff Form® depth is 22mm
- Easily trimmed on site to enable fast and simple installation
- Pre-formed fixing holes
- available wastes - VINYL or TILED including low profile versions
- Lifetime guarantee if fitted in accordance with manufacturers instructions

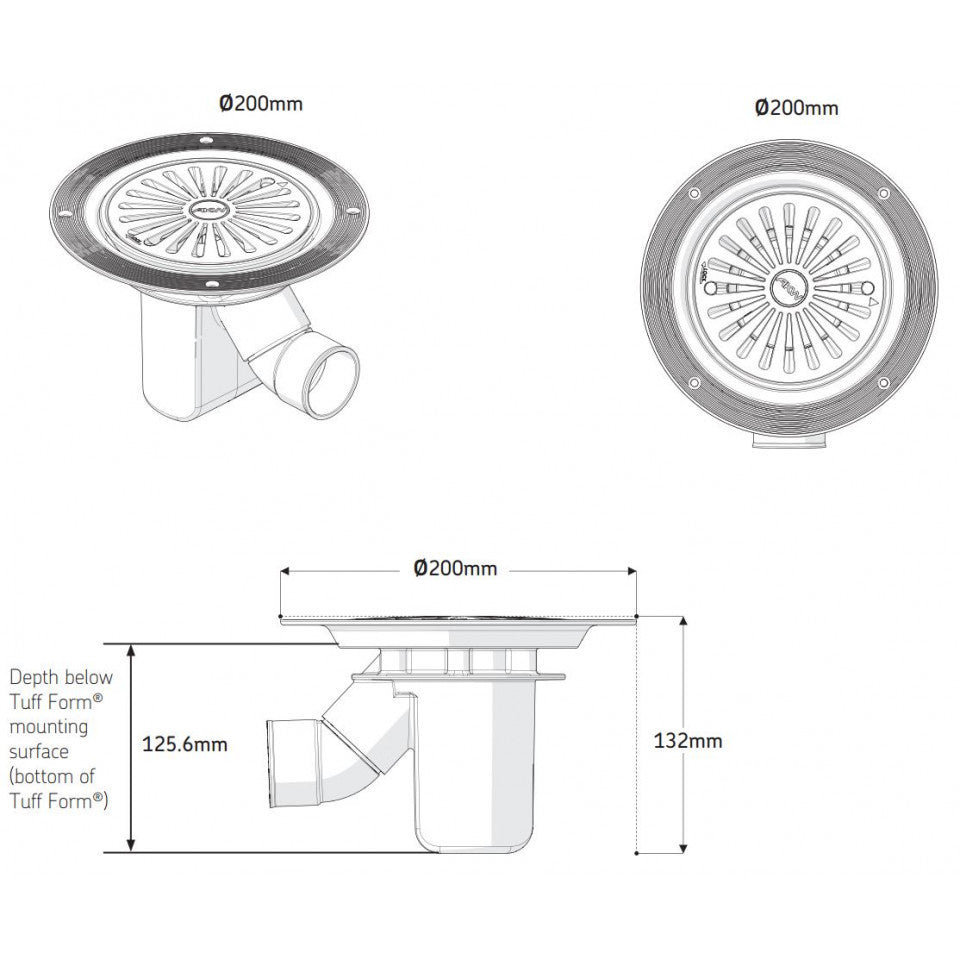

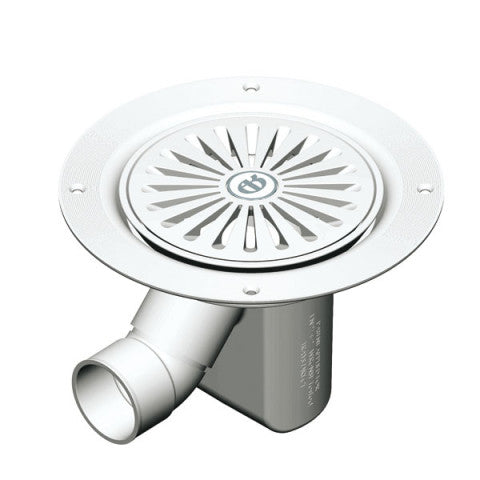

TF75 Gravity Waste for VINYL:
- Opens for easy cleaning and rodding
- 125mm deep below mounting surface
- 75mm water trap depth (seal)
- Adjustable elbow for waste pipe exit
- Patented design: GB2402946
- Guaranteed for life*
- H132 x W200

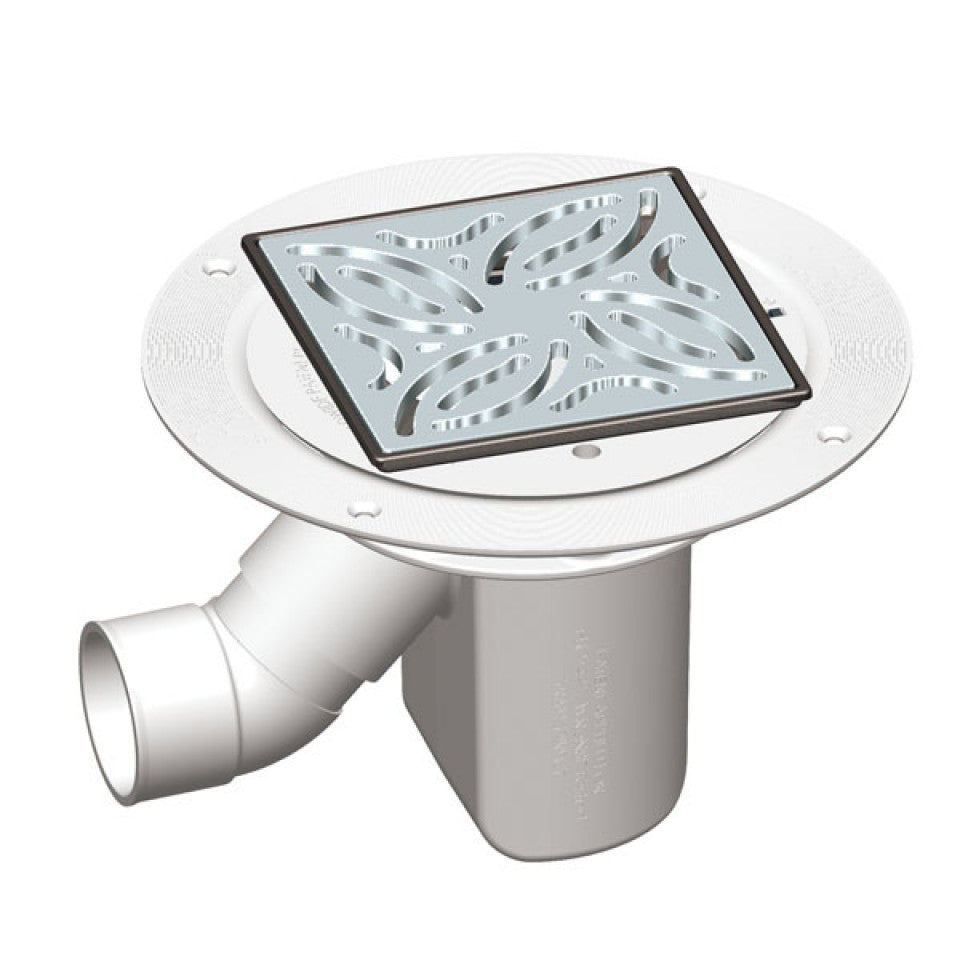

- For use with Tuff Form former when tiling
- Opens for easy cleaning and rodding
- 125mm deep below mounting surface
- Overall depth 132mm
- 75mm water trap depth
- Adjustable elbow for waste pipe exit
- Stainless steel plate dimensions - 120 x 120mm
- Stainless steel plate height is adjustable to max of 18mm with adhesive
- Guaranteed for Life*

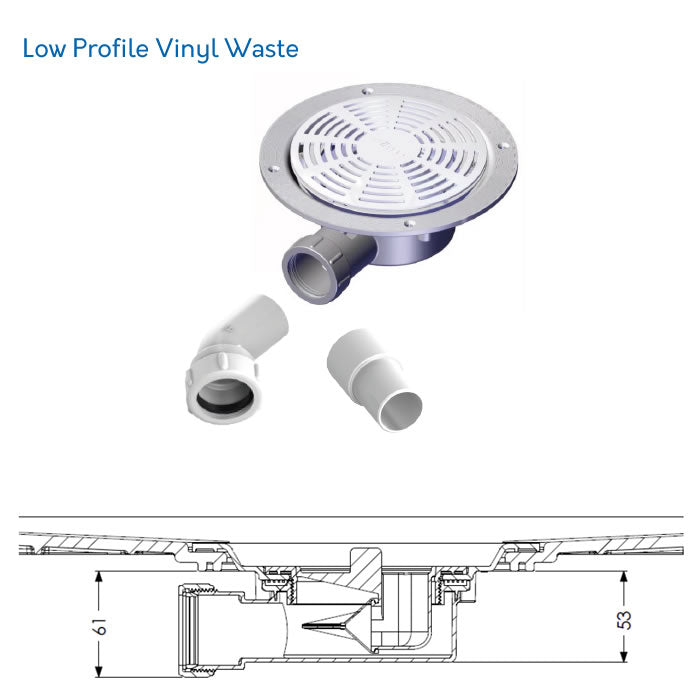

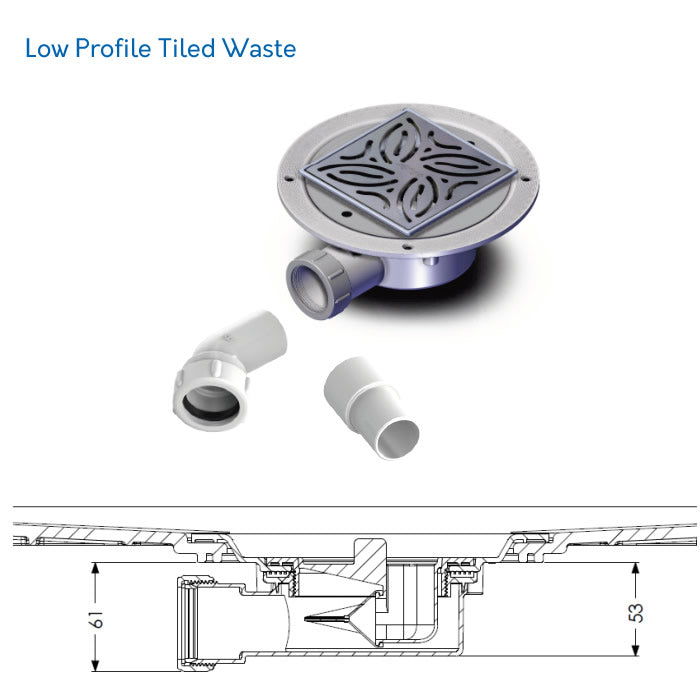

- Shallow 53mm depth. Useful for solid floors or shallow joists.
- Trap will not dry out with sporadic use
- Very compact
- Good seals and location
- Non return valve preventing bad odour backflow
- Suitable for push fit pipe (with included adaptor)
- Suitable for solvent weld pipe (with included adaptor)
- Top access for easy cleaning
- High flow rate (27 l/min with 15mm head and 1m of pipe)
- Meets the performance requirements of British standards

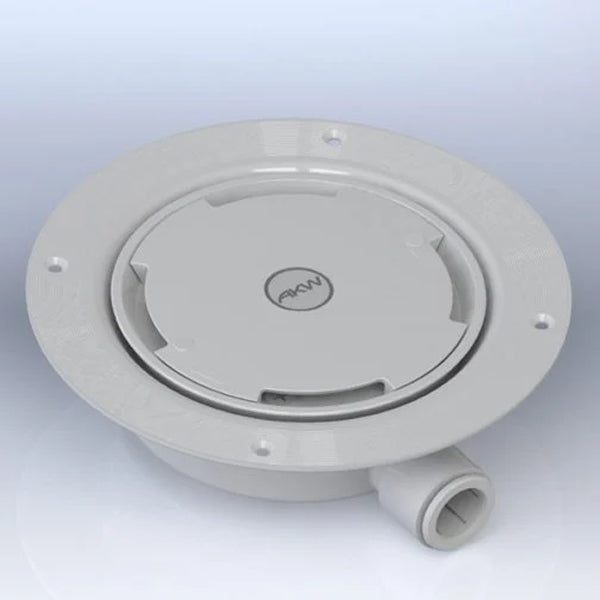

- Replaces 15mm & 22mm PGTF
- If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
- Quiet performance at all flow rates
- Integrated 22mm JG fitting
- Bayonet or screw fit cover
- Improved aesthetics over existing PGTF
- Dual chambers balance flow and reduce gulping effect
- Baffles reduce noise escaping chambers
- Flow guides encourage linear flow
- Bayonet cover fits existing TF75
- Compatible with all AKW shower waste pumps
- Depth below tray 48mm/overall depth 55mm
- Pump NOT Included
- Guaranteed for Life*
- Replaces 15mm & 22mm PGTF
- If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
- Quiet performance at all flow rates
- Integrated 22mm JG fitting
- Bayonet or screw fit cover
- Improved aesthetics over existing PGTF
- Dual chambers balance flow and reduce gulping effect
- Baffles reduce noise escaping chambers
- Flow guides encourage linear flow
- Bayonet cover fits existing TF75
- Compatible with all AKW shower waste pumps
- Depth below tray 48mm/overall depth 55mm
- Guaranteed for Life*

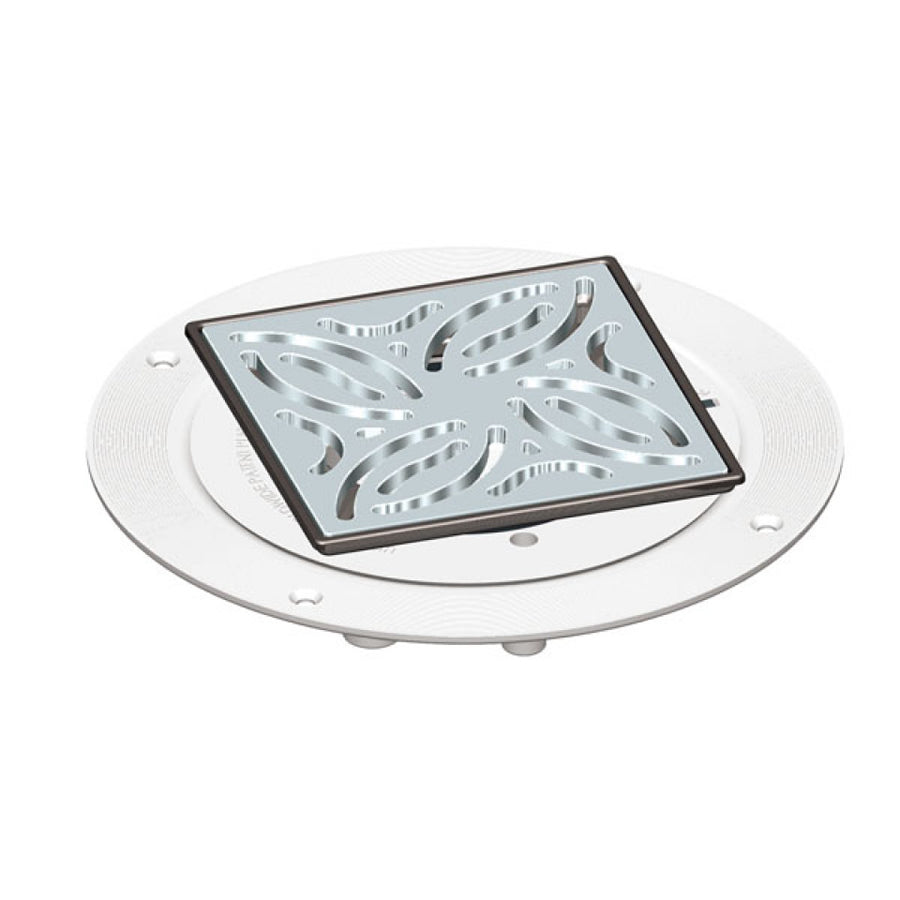

- For use with Tuff Form former when tiling
- 22mm outlet pipe versions only
- Opens for easy cleaning and rodding
- Pump NOT Included
- 22mm depth below tray = 44mm
- 22mm JG Speedfit outlet
- Stainless steel plate dimensions = 120 x 120mm
- Stainless steel plate height is adjustable to max of 18mm
- Guaranteed for Life*
MERLYN 8MM Wetroom Panel
Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.
Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.
Features:
- Height: 2015mm (Including rail)
- All panels from 700mm & above come with a 1000mm stabilising bar
- Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
- * All shower screens are nominally sized, see screen adjustment tab for measurements
- 8mm toughened glass
- Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
- Strong & sturdy constructions
- 3m support post can be retro-fitted to glass thickness of 8mm
- Suitable for recess or corner situation
- Optional Swivel panel can be retrofitted to any 8mm wetroom panel
- Easy clean Mershield Stayclear protected glass
- Reversible
- Corner profile option available
- Wetroom compatible
- 20-year Guarantee
